EMBEDDED MODULES / IN STOCK

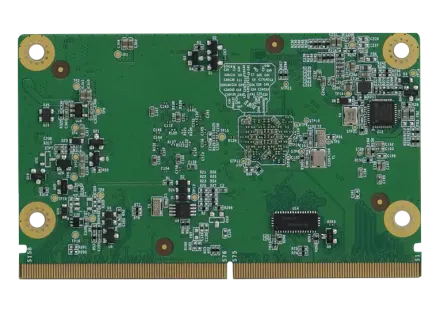

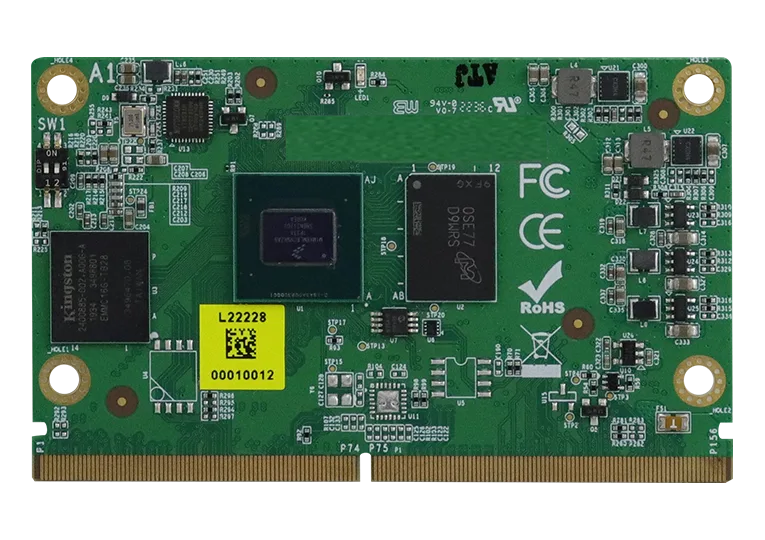

RM-N8MP

AI Edge Board with NXP ARM® i.MX 8M Plus Quad-core Cortex-A53 Processor

AI Edge Board with NXP ARM® i.MX 8M Plus Quad-core Cortex-A53 Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

NXP i.MX 8M Plus Quad-core Cortex-A53 processor

MEMORY

System memory: 3GB LPDDR4 on board (option: 4/8GB)Data Memory: 16GB eMMC on board (up to 256GB)

STORAGE

uSDHC(eMMC/SD)

DISPLAY

1x MIPI-DSI (4-Lane), up to 1920 x 1080 at 60 Hz1x LVDS (2-channel, 4-lane; 1-ch LVDS mux shared with MIPI-DSI)1x HDMI

AI Edge BoardAI Computing Platform

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # RM-N8MP — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

25 ROWS

Form Factor	SMARC™ 2.1 Module
CPU Type	NXP i.MX 8M Plus Quad-core Cortex-A53 processor
CPU Socket	N/A
PCH	N/A
Memory	System memory: 3GB LPDDR4 on board (option: 4/8GB)Data Memory: 16GB eMMC on board (up to 256GB)
H/W Monitor	N/A
Graphics	OpenGL ES 1.1, 2.0, 3.0, 3.1, OpenCL 3.0,OpenVG 1.1, OpenGL 4.0, EGL 1.5, Vulkan 1.1
Display	1x MIPI-DSI (4-Lane), up to 1920 x 1080 at 60 Hz1x LVDS (2-channel, 4-lane; 1-ch LVDS mux shared with MIPI-DSI)1x HDMI
Image Capture Interface	1x MIPI CSI-2 4-lanes1x MIPI CSI-2 2-lanes
Video Codec	1080p/60fps video decode, AVC/H.264, HEVC/H.265, VP8, VP91080p/60fps video encode, AVC/H.264, HEVC/H.265
I/O Chipset	NXP i.MX 8M Plus Quad-core Cortex-A53 processor, Cortex® -M7 CPU operating up to 800 MHz
Watchdog	256 levels, 0~128 seconds
External I/O	N/A
Internal I/O	2x I²S2x GbE with YT8531H LAN PHY on board2x USB 3.0 with OTG interface4x UART, 2x SPI3x High-speed SDIO1x PCI-E Gen 3x 1 Lane12x GPIO4x I²C2x CAN FD
Expansion IO	N/A
TPM	Yes(sTPM)
Storage	uSDHC(eMMC/SD)
Dimensions	82mm x 50mm (3.2” x 2”)
Others	NPU:2.3 TOP/s Neural Network performance• Keyword detect, noise reduction, beamforming• Speech recognition (i.e. Deep Speech 2)• Image recognition (i.e. ResNet-50)
Power Consumption	10.75 W
Operating Temperature	-40°C~85°C (-40°F ~ 185°F)
Storage Temperature	-40°C~85°C (-40°F ~185°F)
Relative Humidity	0 % to 90 % RH at 60° C (non-condensing)
Certification	CE/ FCC Class B
Operating System	Yocto 4.0Android 11Other OS (by request)
