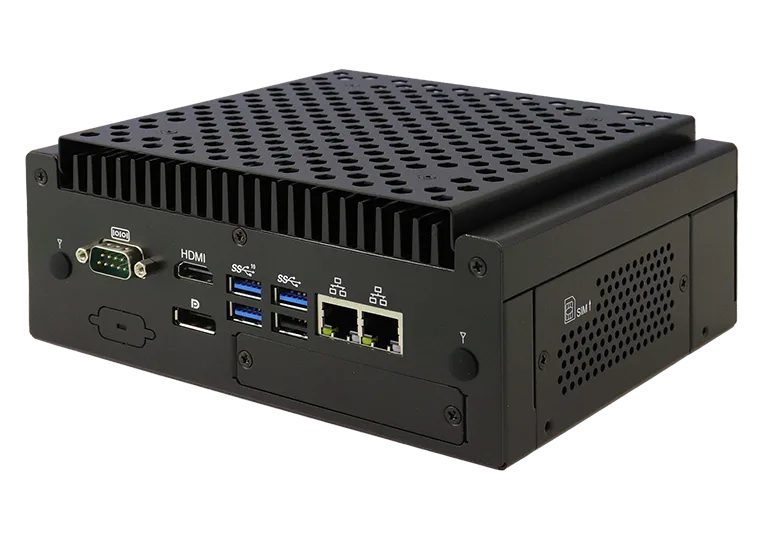

ASB200-962U

Name: ASB200-962U
Brand: IBASE Technology
SKU: ASB200-962U
Availability: InStock

Edge AI Computer with Intel® Core™ Ultra 100U Series

Edge AI Computer with Intel® Core™ Ultra 100U Series. Local warranty support and engineering customization available on request.

CPU

Intel® Core™ Ultra 100U Series Mobile Processors

STORAGE

1x M.2 (M2280), (supports NVMe)1x 2.5’’ HDD or SSD

OPERATING TEMP.

-10°C ~ +55°C (14°F~131°F) *with airflow 0.9m/s

POWER INPUT

90W power adaptor

Edge AI ComputerAI Computing Platform

P/N # ASB200-962U

22 ROWS

System Mainboard	IB962AF-165U/ IB962AF-135U
CPU Type	Intel® Core™ Ultra 100U Series Mobile Processors
System Speed	Up to 4.9GHz
AI Inference Computing Power	12 pTOPS

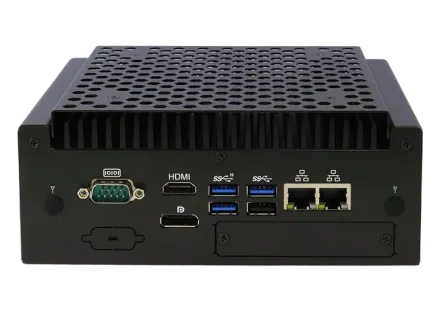

Front Panel External I/O	3x USB 3.21x USB 2.01x DisplayPort 1x HDMI1x DB9 for COM#1 (RS232/422/485) 2x 2.5G LAN

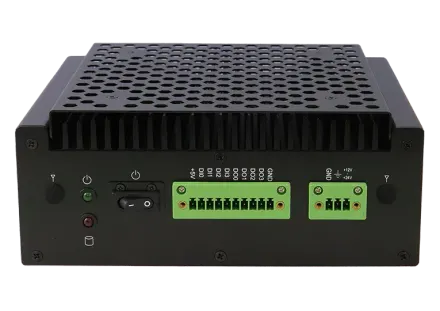

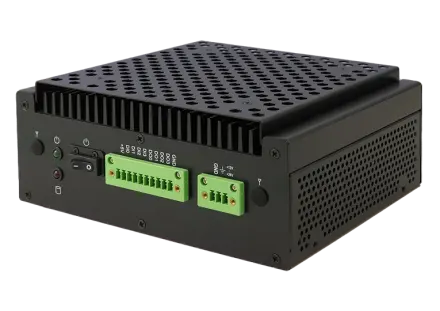

Rear Panel External I/O	1x power button1x Digital I/O (4-in/4-out) 2x Antenna holes1x HDD LED1x 3-pin DC-in terminal block for 24V power adaptor
Expansion Slot	3x M.2 sockets (B-Key/ E-Key and M-Key)
Storage	1x M.2 (M2280), (supports NVMe)1x 2.5’’ HDD or SSD
Power Requirement	24V DC IN
Power Supply	90W power adaptor
Construction	Aluminum & steel
Chassis Color	Black

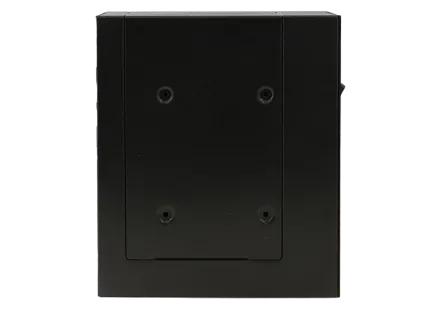

Mounting	Desktop & wall mount bracket Optional VESA mount kit
Weight	1.5 kg
Dimensions	180mm (W) x 150mm (D) x 72mm (H) 7.08” (W) x 5.9” (D) x 2.83” (H)
Operating Temperature	-10°C ~ +55°C (14°F~131°F) *with airflow 0.9m/s
Storage Temperature	-20°C ~ +80°C (-4°F~176°F)
Relative Humidity	5% ~ 90% @ 45°C (non-condensing)
Vibration	Operating: 1Grms / 3~500Hz
Shock	Operating : 20G / 11ms Non-operating : 40G / 11ms
Certification	CE/LVD/FCC Class B
Operating System	Windows 11
