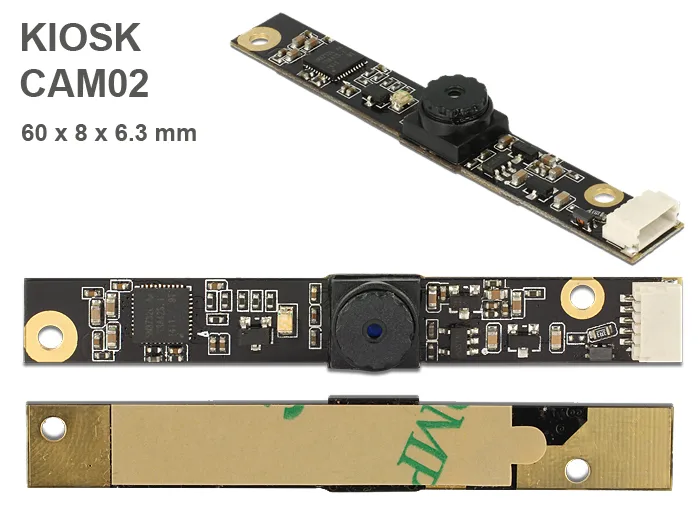

IR Camera Module 3.14 mega pixel 48° V5 fix focus USB 2.0 interface
IR Camera Module 3.14 mega pixel 48° V5 fix focus USB 2.0 interface. Local warranty support and engineering customization available on request.
DISPLAY
3.14 Mega Pixel · Without optical IR filter · Standard SCCB interface (I²C Bus) · RAW RGB, RGB565/555/444, CCIR656,YUV422/420, YCbCr422 and compression
OPERATING TEMP.
5 °C ~ 50 °C
POWER
5 V DC
DIMENSIONS
1/4 inch
P/N # KIOSKCAM02
Manual Specifications
14 ROWS
| Connector | USB 2.0 5 pin jack SMT, 1 mm pitch |
|---|---|
| Resolution | 3.14 Mega Pixel · Without optical IR filter · Standard SCCB interface (I²C Bus) · RAW RGB, RGB565/555/444, CCIR656,YUV422/420, YCbCr422 and compression |
| Maximum resolution | QXGA (2048 x 1536) · • Automatic image control functions including · - Automatic exposure control (AEC) · - Automatic white balance (AWB) · - Automatic band filter (ABF) · - Automatic black-level calibration (ABLC) · Image quality controls including colour saturation, gamma, · sharpness (edge enhancement), lens correction, white pixel canceling, · noise canceling, and automatic 50/60 Hz luminance detection · Supports scaling mode |
| Operating voltage | 5 V DC |
| Operating temperature | 5 °C ~ 50 °C |
| Relative humidity during operation | max. 80 % |
| Sensor size | 1/4 inch |
| Sensitivity | 0.6 V (lx s) |
| Signal to noise ratio | 36 dB |
| Dynamic range | 68 dB |
| Fix focus | 0.3 m ~ infinite |
| Lens | F/2.8 |
| Frame rates | 30 fps @ HVGA, VGA, XGA, 720p, QVGA · 15 fps @ UXGA, 1080p, QXGA |
| Dimension (LxWxH) | ca. 60 x 8 x 6.3 mm |
Features
1 ROWS
| Feature 1 | USB 2.0 camera module offers in compact construction low power consumption as well as high resolution. It is ideal for installation in industry components like IPCs, embedded systems, sensors, notebooks, smartphones, tablets or instrument manufacture. You can perform with suitable IR lighting shots in the dark.The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module. |
|---|
Ordering Information
1 ROWS
| Kiosk-CAM02 | - Module 3.14 mega pixel 48° fix focus IR Captor |
|---|
