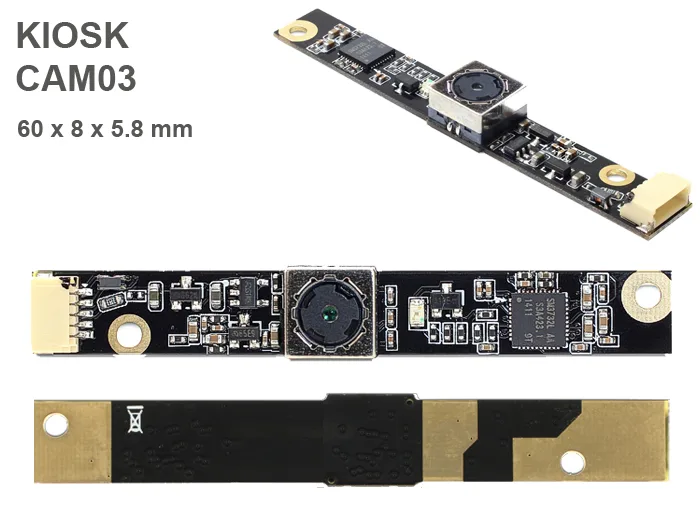

KIOSKCAM03
Camera Module 3.14 Megapixel 62° Auto Focus USB 2.0 interface
Camera Module 3.14 Megapixel 62° Auto Focus USB 2.0 interface. Local warranty support and engineering customization available on request.
DISPLAY
QXGA (2048 x 1536)
OPERATING TEMP.
5 ~ 40 °C
POWER
Low operating voltage 5 V
DIMENSIONS
1/4 inch
P/N # KIOSKCAM03
Manual Specifications
12 ROWS
| Supports resolutions | QXGA (2048 x 1536) |
|---|---|
| Different fully-automated shutter priority | - Automatic image control functions including automatic · exposure control (AEC) · - Automatic white balance (AWB) · - Automatic band filter (ABF) · - Automatic black-level calibration (ABLC) · • Image quality controls including colour saturation, gamma, · sharpness (edge enhancement), lens correction, white pixel canceling, · noise canceling, and autom. 50/60 Hz luminance detection · • Supports scaling |
| Power consumption | Low operating voltage 5 V |
| Operating temperature | 5 ~ 40 °C |
| Relative humidity during operation | max. 20 – 80 % |
| Lense dimension | 1/4 inch |
| Sensitivity | 0.6 V (Lux. sec) |
| Signal-to-noise ratio | 36 dB |
| Dynamic range | 68 dB |
| Lense | F/2.8 · • Auto focus |
| Frame rates | 30fps@HVGA, VGA, XGA, 720p, QVGA · 15fps@UXGA, 1080p, QXGA |
| Dimension | 60 x 8 x 5.8 mm (L/W/H) |
Features
3 ROWS
| Feature 1 | Camera module offers a very compact design, high resolution and low power consumption. |
|---|---|
| Feature 2 | It is ideally suited for integration into your projects. |
| Feature 3 | The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module. |
Ordering Information
1 ROWS
| Kiosk-CAM03 | - Module 3.14 mega pixel 62degree Auto Focus |
|---|
