BYTEM-123-PC
EN50155 Certified Fanless 12.1" Railway Panel PC with Intel® Atom® E3845 Processor
EN50155 Certified Fanless 12.1" Railway Panel PC with Intel® Atom® E3845 Processor. Local warranty support and engineering customization available on request.
Specifications
| CPU Type | Intel® Atom® Processor E3845 (Quad-Core 1.91GHz) |
|---|---|
| Memory | 2x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB (4GBx1) |
| Display Size | 12.1” TFT-LCD |
| Max. Resolution | 1024 x 768 |
| Luminance (cd/m2) | 500 |
| Contrast | 1000:1 |
| Max. Color | 16.7M |
| View Angle (H°/V°) | 178/178 |
| Backlight Lifetime(hrs) | 30000 |
| Touch Type | Projected capacitive |
| Touch Interface | USB |
| Light Transmission (%) | 86 |
| Point of touch | 10 |
| I/O Interface | 1x USB 3.02x USB 2.0 (1x Type A and 1x M12 A-code 4Pconnector)1x COM port for RS-232/422/4852x GbE LAN ports,2x 10/100 LAN with M12 connector1x Display port1x M12 A-code 4P DC-input |
| Power Button | Reset button |
| Power Input Range | 24V DC (default) power input, Optional, 72V DC & 110V DC |
| Membrane Control | Brightness up/down and Volume up/down/power button |
| Audio | 2x Speakers |
| Internal Expansion | 1x mPCI-E(x1) w/ USB signal [half-size]1x mSATA/mPCI-E(x1) w/ USB signal and mSATA supports [full-size] |
| Wireless | Optional Wi-Fi/BT |
| Storage | 1x 2.5” SATA |
| Thermal Design | Fanless |
| Construction | Aluminum front bezel and back cover |
| Chassis Color (Front/ Back) | Silver/Silver |
| IP Rating | IP65 front bezel/ IP54 for whole unit with I/O cover |
| Mounting | Wall mount and VESA 75x75 mm |
| Dimensions | 335 (W) x 267 (D) x 72.1 (H) mm13.18” (W) x 10.5” (D) x 2.83” (H) |
| Net Weight | 3.6 kgs |
| Operating Temperature | -30°C~70°C (-22 ~158 °F) (EN50155-TX) |
| Storage Temperature | -40°C ~ 85°C (-40 ~185 °F) |
| Storage Humidity | 10%~90% (non-condensing) |
| Certified | EN50155: 2017, EN45545-2CE/FCC Class-B |
| Operating Systems | Windows 10 32/64-bit, Windows 7 32/64-bit, Linux 3.x/4.x |

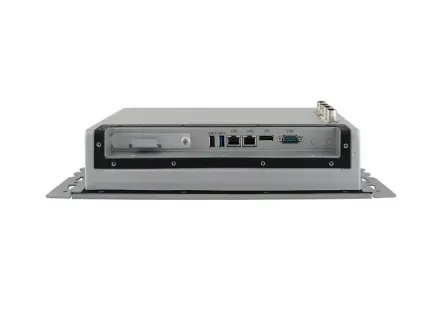

I/O — Rear panel
Front access
Where the BYTEM-123-PC is deployed
Plant-floor human-machine interfaces for SCADA and process visualization.
Diagnostic and point-of-care touch terminals with sealed, sanitizable fronts.
Public-facing terminals for wayfinding, ticketing, and interactive displays.
Sunlight-readable, sealed touch terminals for outdoor and in-vehicle use.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
