CSWM005

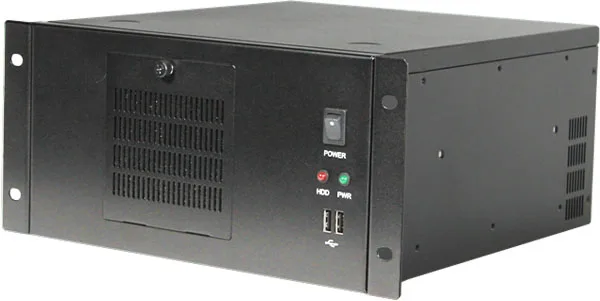

WM005 - 4-Slot Wallmount Chassis for High-Performance Micro-ATX Motherboard w/ Slim ODD bay
WM005 - 4-Slot Wallmount Chassis for High-Performance Micro-ATX Motherboard w/ Slim ODD bay. Local warranty support and engineering customization available on request.
Specifications
| Construction | Heavy-duty steel |
|---|---|
| Drive Bay | External: none · Internal : 2 x 2.5" HDD bay |
| Color of Chassis | Black, Silver (option) |
| Power Supply | Flex ATX power supply · 1U power supply |
| System Board | Mini-ITX / · Micro-ATX motherboard · 2 x USB Ports in the front side2 x USB Ports inside (option) · Power on/off x1IndicatorPower and HDD LEDs · 262 x 292 x 155 mm10.3 x 11.5 x 6.1 inch · 360 x 410 x 255 mm14.2 x 16.1 x 10 inch |
Features
| Feature 1 | 1 x Slim ODD bay |
|---|---|
| Feature 2 | Four expansion slot |
| Feature 3 | Two front USB |
| Feature 4 | 1 x 80 mm front fan |
| Feature 5 | 2 x 2.5" HDD drive bay (Anti-shock design) |
| Feature 6 | Wallmounting / Front-mounting |
Ordering Information
| CS-WM005 - Compact 4-slot wallmount chassis for ATX MB, w/o 1UPSU CS-WM105 |
|---|
I/O — Rear panel
Front access
Where the CSWM005 is deployed
Add connectivity and storage capability to existing industrial and third-party boards.
Extend the useful life of fielded systems with a drop-in accessory card.
Building-block components for OEM BTO assembly and custom system integration.
Stocked accessory parts for maintenance and repair of deployed systems.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓CSWM005 datasheetPDF document
- DOWNLOAD ↓CSWM005 diagramPDF document
