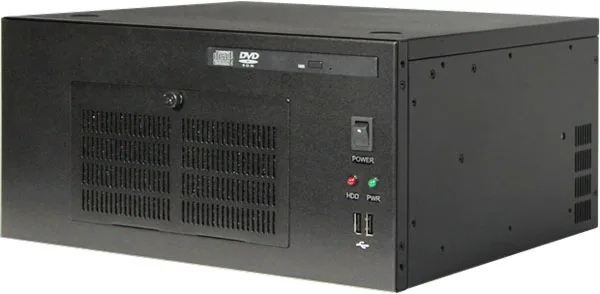

CSWM008
wm008 - WM008 - 7-Slot Wallmount Chassis for High-Performance Full ATX Motherboard w/ Slim ODD bay
wm008 - WM008 - 7-Slot Wallmount Chassis for High-Performance Full ATX Motherboard w/ Slim ODD bay. Local warranty support and engineering customization available on request.
Specifications
| Construction | Heavy-duty steel |
|---|---|
| Drive Bay | Internal : 2 x 2.5" HDD bay · External : 1 x Slim ODD bay |
| Color of Chassis | Black, Silver (option) |
| Cooling Fan | 2 x 92 mm in Front side · 1U 350W power supply · Option: 1U 400W power supply |
| System Board | ATX motherboard |
| Connector | 2 x USB Ports in the front side · 2 x USB Ports inside (option) |
| Controls | Power on/off x1 |
| Indicator | Power and HDD LEDs · 322 x 293 x 155 mm · 12.7 x 11.5 x 6.1 inch |
| Weight(net/gross) | 4.7 kg (10.4 lb) / 6.1 kg (13.4 lb · 0 'C (32 'F) ~ 50 'C (122 'F) |
| Humidity | 5% ~ 95% non-condensing · Size 420 x 410 x 255 mm 16.5 x 16.1 x 10 inch |
Features
| Feature 1 | 1 x Slim ODD bay |
|---|---|
| Feature 2 | Seven expansion slot |
| Feature 3 | Two front USB |
| Feature 4 | 2 x 80 mm front fan |
| Feature 5 | 2 x 2.5" HDD drive bay (Anti-shock design) |
| Feature 6 | Wallmounting / Front-mounting |
I/O — Rear panel
Front access
Where the CSWM008 is deployed
Add connectivity and storage capability to existing industrial and third-party boards.
Extend the useful life of fielded systems with a drop-in accessory card.
Building-block components for OEM BTO assembly and custom system integration.
Stocked accessory parts for maintenance and repair of deployed systems.
