FANDAY7

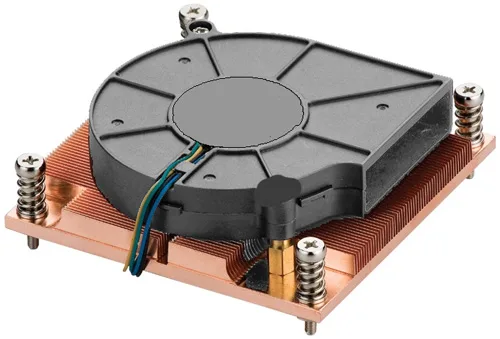

FAN-DAY7 1U CPU COOLING BLOWER W/ PWM LGA 1366/1356
FAN-DAY7 1U CPU COOLING BLOWER W/ PWM LGA 1366/1356. Local warranty support and engineering customization available on request.
DIMENSIONS
90 (L) x 90 (W) x 27 (H) mm
MATERIALS
Copper
WEIGHT
472 g
PWM FUNCTION
YES
AccessoryThird-party (cooling)
P/N # FANDAY7
Specifications
9 ROWS
| Dimensions | 90 (L) x 90 (W) x 27 (H) mm |
|---|---|
| Materials | Copper |
| Weight | 472 g |
| PWM Function | YES |
| Thermal Grease | Shin-Etsu 7762 pre-applied · 75x75x15mm · 12V Power Consumption : 1.2~ 9.6 W · Dual Ball bearing |
| Fan speed | At duty cycle 0~30% : 1000 rpm · At duty cycle 100% : 5500 rpm |
| Noise Level | At duty cycle 0~30% : max.18 dBA · At duty cycle 100% : max. 51 dBA |
| Air Flow | 1.93~11.83 CFM |
| Static pressure | 0.38~20.66 mmH2O · 4-pin PWM |
I/O — Rear panel
Front access
Where the FANDAY7 is deployed
USE CASE
Expansion & upgrades
Add connectivity and storage capability to existing industrial and third-party boards.
USE CASE
Field retrofit
Extend the useful life of fielded systems with a drop-in accessory card.
USE CASE
Custom builds
Building-block components for OEM BTO assembly and custom system integration.
USE CASE
Spares & maintenance
Stocked accessory parts for maintenance and repair of deployed systems.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓FANDAY7 datasheetPDF document
