PERIPHERALS & ACCESSORIES / IN STOCK
FANDENDSA

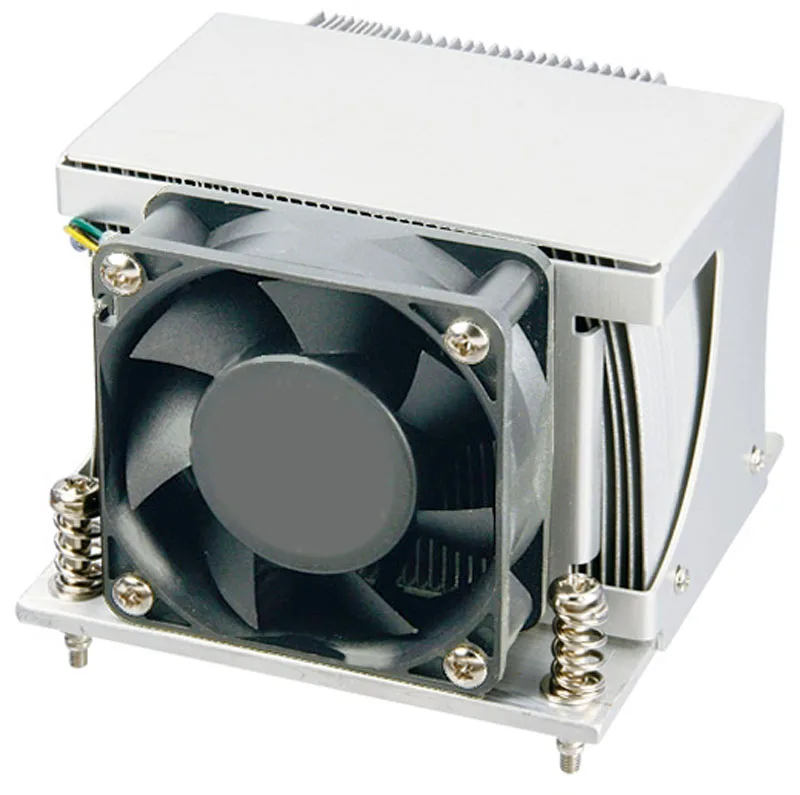

INTEL / Socket 1156 for Desktop or Server 2u style
INTEL / Socket 1156 for Desktop or Server 2u style. Local warranty support and engineering customization available on request.
POWER
11.4V~12.6V DC
DIMENSIONS
90L*90W*68H (mm)
MATERIAL
Aluminum
WEIGHT
~ 417 g
AccessoryThird-party (cooling)
P/N # FANDENDSA
Specifications
15 ROWS
| Overall Dimensions | 90L*90W*68H (mm) |
|---|---|
| Material | Aluminum |
| Weight | ~ 417 g |
| Fin Process | Skived |
| Installation Kit | Screw+Spring |
| Thermal Interface Material | ShinEtsu 7762 |
| Backplate | optional |
| Fan Dimmension | 60L*60W*20H (mm) |
| Operation Voltage | 11.4V~12.6V DC |
| Bearing Type | One Ball Bearing |
| Fan Speed | 1200rpm +/- 300rpm ~ 5800rpm +/-10% |
| Air Flow | 5.95 CFM ~ 28.77CFM |
| Noise Level | 19 dBA ~ 38 dBA |
| Life Expectation | 40,000 hours |
| Connector | 4 pins PMW |
I/O — Rear panel
Front access
Where the FANDENDSA is deployed
USE CASE
Expansion & upgrades
Add connectivity and storage capability to existing industrial and third-party boards.
USE CASE
Field retrofit
Extend the useful life of fielded systems with a drop-in accessory card.
USE CASE
Custom builds
Building-block components for OEM BTO assembly and custom system integration.
USE CASE
Spares & maintenance
Stocked accessory parts for maintenance and repair of deployed systems.
