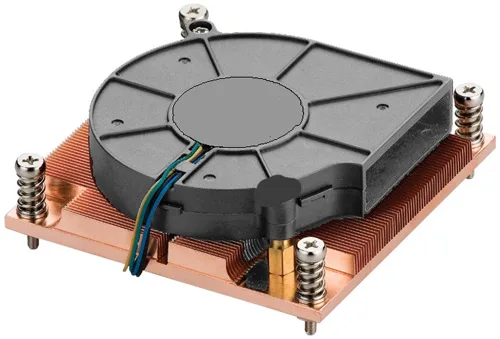

FANITO7
FAN ITO7 - 1U CPU Cooling fan w/ PWM blower - Socket LGA 2011 Square (80x80 mounting
FAN ITO7 - 1U CPU Cooling fan w/ PWM blower - Socket LGA 2011 Square (80x80 mounting. Local warranty support and engineering customization available on request.
Specifications
| Dimensions | 90 mm (L) x 90 mm (W) x 27 mm (H) |
|---|---|
| Materials | Copper |
| Weight | 472 g |
| PWM Function | YES |
| Thermal Grease | Shin-Etsu 7762 pre-applied |
| Fan size | 75x75x15mm |
| Fan voltage | 12V |
| Bearing | Dual Ball bearing |
| Fan speed | 1000~ 5500 rpm |
| Noise Level | 18~51 dBA |
| Air Flow | 1.93~11.83 CFM |
| Power | 1.2~ 9.6 W |
| Static pressure | 0.38~20.66 mmH2O |
| Fan connector | 4-pin |
| Lead wire | UL1061 #26AWG or equivalent |
| Pin Assignment | Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM) |
