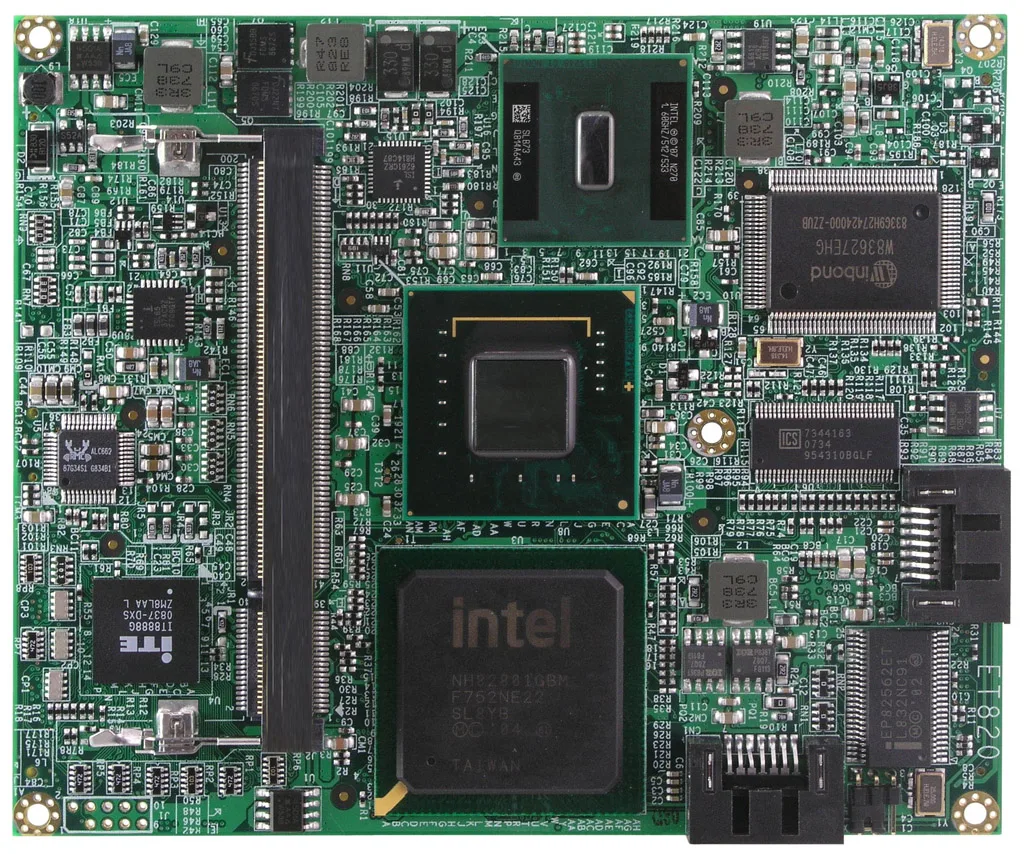

ET820

Name: ET820
Brand: IBASE Technology
SKU: ET820
Availability: InStock

Intel Atom-based ETX CPU Module with VGA/LAN/Audio

Intel Atom-based ETX CPU Module with VGA/LAN/Audio. Local warranty support and engineering customization available on request.

CPU

Intel® N270 Atom processor, 1.6GHz

MEMORY

One DDR2 SODIMM socket, single channel Supports up to 1GB DDR2 400/533/667 SDRAM

ETHERNET

Intel® ICH7M 10/100 BaseT Ethernet

POWER

+5V: 5A (for ET820-400, ET820-500) · +5V: 10A (Maximum)

P/N # ET820

20 ROWS

CPU	Intel® N270 Atom processor, 1.6GHz
CPU Front Side Bus	533MHz
Chipset	Intel® 945GSE + ICH7M
BIOS	ACPI Award 2Mbit Flash BIOS
System Memory	One DDR2 SODIMM socket, single channel Supports up to 1GB DDR2 400/533/667 SDRAM
PATA IDE Interface	Intel® ICH7M built-in one chnnel UDMA 33/66/100 for HDDs, CF or DOM on ETX carrier board Secondary IDE (reserved) JMicron JM368 (PCI-e to IDE) for secondary IDE
USB	Intel® ICH7M built-in USB 2.0 host controller supports 4 ports
SATA	Intel® ICH7M built-in SATA controller supports 2 ports
LPC I/O	Winbond W83627EHG 2x COM, Hardware monitoring
Parallel Port (on base board)	One parallel port supports SPP/EPP/ECP
Serial Ports (on base board)	One RS-232, one RS-232/422/485
PCI to ISA Bridge	ITE IT8888G (slave ISA only)
ETX Interface (Connector to Carrier Board)	>Hirose FX8-100P-SV ETX connector x4 for PCI bus, USB, audio, VGA/CRT, LVDS, LAN, COM ports, parallel port, IDE, PS/2 keyboard/mouse & ISA bus
Built-in VGA Function	>Intel® Graphics Media Accelerator (GMA) 950, supports CRT display · DVI Chrontel CH7308 Supports 24-bit dual channel LVDS display
Built-in Audio Function	Built-in Intel® High Definition Audio ALC662 HDA Codec
Ethernet Function	Intel® ICH7M 10/100 BaseT Ethernet
Form Factor	ETX form factor
Dimensions	95mm x 114mm (3.5" x 4.49")
Power Requirement	+5V: 5A (for ET820-400, ET820-500) · +5V: 10A (Maximum)
Relative Humidity	10%~90% (non-condensing)
