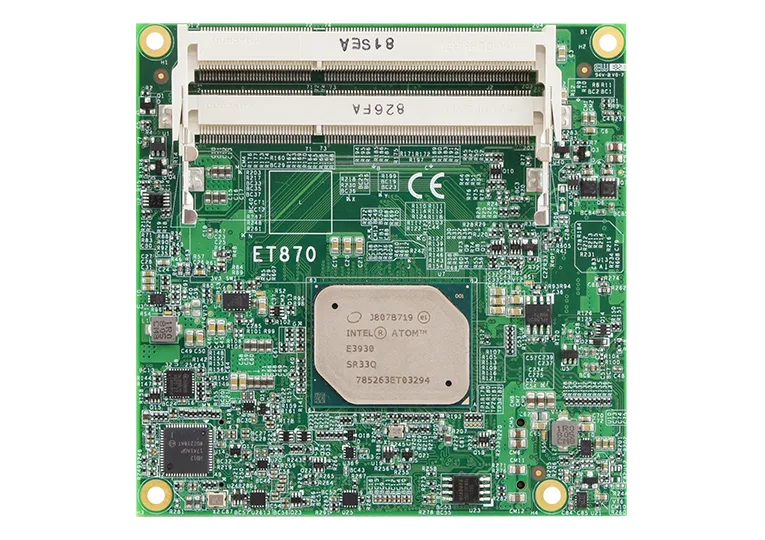

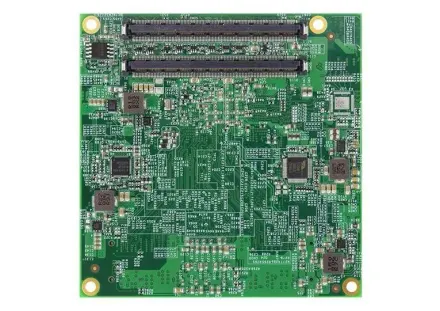

ET870

COM Express Type 6 (R3.0) CPU Module with Intel® Atom® x7/ x5 Processor

COM Express Type 6 (R3.0) CPU Module with Intel® Atom® x7/ x5 Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)

MEMORY

2x DDR3L-1866 SO-DIMM sockets, Max. 16GB

STORAGE

N/A

DISPLAY

Supports 2x DDI (DisplayPort / DVI-D)1x 24-bit dual-channel or eDP

COM ExpressCPU Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ET870 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)
PCH	Integrated in Intel® SoC
Memory	2x DDR3L-1866 SO-DIMM sockets, Max. 16GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	N/A
Expansion Slots	4x PCI-E(x1)
Graphics Controller	Intel® SoC integrated Gen9 18EUs graphics
Video Output	Supports 2x DDI (DisplayPort / DVI-D)1x 24-bit dual-channel or eDP
Ethernet	Intel® I210IT PCI-E Gigabit LAN
I/O Chipset	Fintek F81804U-I
Serial Port	2x COM ports (Tx/Rx only))
USB 2.0	4x USB 2.0 via carrier board
USB 3.X	3x USB 3.0 via carrier board
Serial ATA	2x SATA III via carrier board
Audio	Intel® Atom® SoC built-in HD Audio
TPM	TPM (2.0)
Others	Digital I/O (4-in / 4-out)
Dimensions (L x W)	95mm x 95mm
Power Consumption	Intel® Atom® E3950 1.6GHz w/ 2x 8GB DDR3L-1600+12V: 2.18A
Operating Temperature	-40°C ~85°C (-40°F ~ 185°F)
Storage Temperature	-40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity	10~90% (non-condensing)
