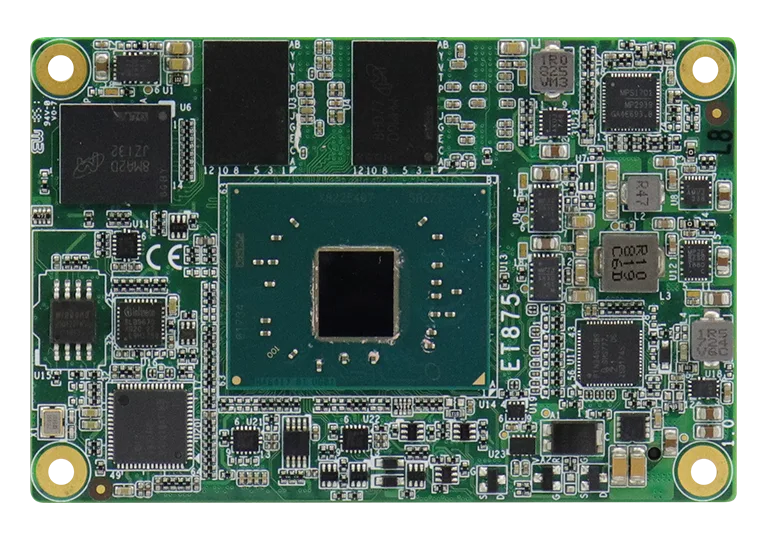

ET875

Name: ET875
Brand: IBASE Technology
SKU: ET875
Availability: InStock

COM Express Type 10 (R3.0) CPU Module with Intel® Atom® x7/x5 / Pentium® / Celeron® Processor

COM Express Type 10 (R3.0) CPU Module with Intel® Atom® x7/x5 / Pentium® / Celeron® Processor. Local warranty support and engineering customization available on request.

CPU

Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)Intel® Pentium® Processor N4200 (1.1GHz~ 2.5GHz)Intel® Celeron® Processor N3350 (1.1GHz~ 2.4GHz)

MEMORY

Onboard memory, LPDDR4, Max 8GB

STORAGE

eMMC 5.0 up to 32GB (option)

DISPLAY

1x DDI1x LVDS or 1x eDP (optionl)

COM ExpressCPU Module

REQUEST QUOTE REQUEST DATASHEET

P/N # ET875

Specifications

24 ROWS

CPU	Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)Intel® Pentium® Processor N4200 (1.1GHz~ 2.5GHz)Intel® Celeron® Processor N3350 (1.1GHz~ 2.4GHz)
PCH	Integrated in Intel® SoC
Memory	Onboard memory, LPDDR4, Max 8GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	eMMC 5.0 up to 32GB (option)
Expansion Slots	4x PCI-E(x1)
Graphics Controller	Intel® SoC integrated Gen9-LP graphics
Video Output	1x DDI1x LVDS or 1x eDP (optionl)
Ethernet	Intel® I210IT PCI-E Gigabit LAN
I/O Chipset	Fintek F81804U-I
Serial Port	2x UART (Tx/Rx only))
USB 2.0	8x USB 2.0 via carrier board
USB 3.X	2x USB 3.0 via carrier board
Serial ATA	2x SATA III via carrier board
Audio	Intel® Atom® SoC built-in HD audio controller
TPM	TPM (2.0)
Others	I2C
Dimensions (L x W)	84mm x 55mm (3.3" x 2.17")
Power Consumption	Intel® Atom® Processor E3950 1.60GHz w/ Onboard LPDDR4 2400MHz 8GB+12V: 1.587A
Operating Temperature	N4200/N3350: -20°C ~ 60°C (-4°F~176°F)(ET875-420/ET875-335)E3950/E3940/E3930: -40°C~85°C (-40°F~185°F) (ET875-x7/x5)
Storage Temperature	-40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity	90% (non-condensing @60°C)
