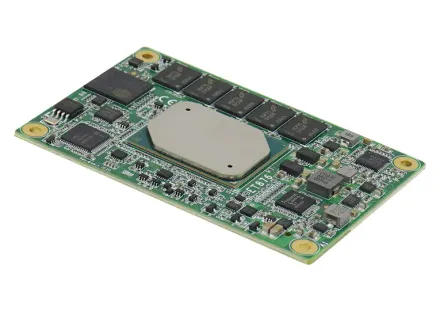

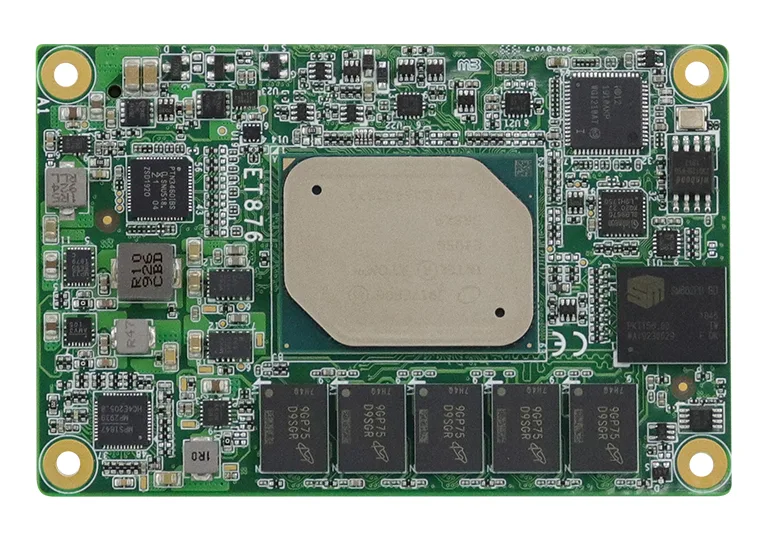

ET876

COM Express Type 10 (R3.0) CPU Module with Intel® Atom® x7/x5 Processor

COM Express Type 10 (R3.0) CPU Module with Intel® Atom® x7/x5 Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)

MEMORY

Onboard 4GB memory, DDR3L 1600MHz with ECC

STORAGE

eMMC 5.0 up to 32GB (option)

DISPLAY

1x DDI1x LVDS or 1x eDP (optional)

COM ExpressCPU Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ET876 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz)Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz)Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz)
PCH	Integrated in Intel® SoC
Memory	Onboard 4GB memory, DDR3L 1600MHz with ECC
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	eMMC 5.0 up to 32GB (option)
Expansion Slots	4x PCI-E(x1)
Graphics Controller	Intel® SoC integrated Gen9-LP graphics
Video Output	1x DDI1x LVDS or 1x eDP (optional)
Ethernet	Intel® I210IT PCI-E Gigabit LAN
I/O Chipset	F81804U-I
Serial Port	2x UART (Tx/Rx only))
USB 2.0	8x USB 2.0 via Carrier Board
USB 3.X	2x USB 3.0 via Carrier Board
Serial ATA	2x SATA III
Audio	Intel® Atom® SoC built-in HD audio controller
TPM	TPM (2.0)
Others	I2C
Dimensions (L x W)	84mm x 55mm (3.3" x 2.17")
Power Consumption	Intel® Atom® E3950 1.6GHz w/ 4GB LDDR3L 1600+12V: 1.42A
Operating Temperature	-40°C ~ 85°C (-40°F~185°F)
Storage Temperature	-40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity	90% (non-condensing @60°C)
