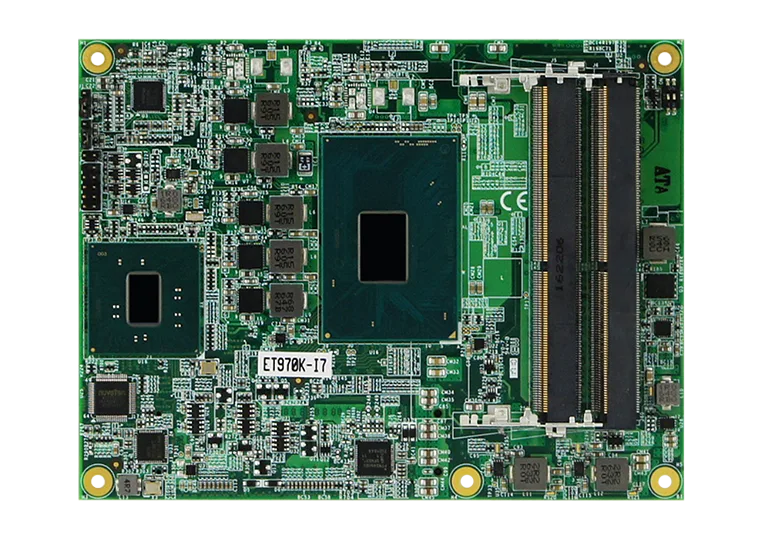

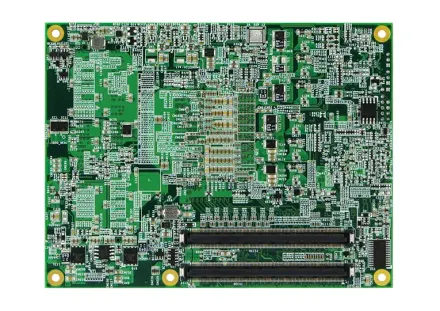

ET970

COM Express Type 6 CPU Module with 7th Gen Intel® Xeon® E3 / Core™i7/i5/i3 Processors

COM Express Type 6 CPU Module with 7th Gen Intel® Xeon® E3 / Core™i7/i5/i3 Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

BGA1440 for 7th Gen Intel® Xeon® E3/ Core™ i7/i5/i3 processors

MEMORY

2x DDR4-2400 SO-DIMM, Max 32GB

STORAGE

N/A

DISPLAY

24-bit dual-channels LVDS on Carrier Board

COM ExpressCPU Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ET970 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	BGA1440 for 7th Gen Intel® Xeon® E3/ Core™ i7/i5/i3 processors
PCH	Intel® QM175 & CM238 & HM175 PCH
Memory	2x DDR4-2400 SO-DIMM, Max 32GB
BIOS	AM
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	N/A
Expansion Slots	8x PCI-E (x1), 1x PCI-E(x16)
Graphics Controller	7th Gen Intel® Core™ processor integrated graphics, supports DVI, HDMI, DisplayPort, LVDS
Video Output	24-bit dual-channels LVDS on Carrier Board
Ethernet	Intel® I219LM LAN PHY/Intel® I219V LAN GbE
I/O Chipset	Nuvoton NCT5523D
Serial Port	2x COM ports (Tx/Rx only)
USB 2.0	8x USB 2.0 via carrier board
USB 3.X	4x USB 3.0 via carrier board
Serial ATA	4x SATA III via carrier board
Audio	Intel® QM175 PCH built-in HD audio w/ Realtek ALC662 or ALC888S codec on Carrier Board (IP413)
TPM	TPM (2.0)
Others	Digital I/O (4-in/4-out)
Dimensions (L x W)	95mm x 125mm (3.74" x 4.92")
Power Consumption	Intel® i7-7820EQ, 3.0GHz w/16GB DDR4-2400+12V: 4.48A; +5V: 0.65A+3.3V: 0.27A, +5[removed] 0.13A
Operating Temperature	-40°C~75°C (-40°F~167°F)(ET970K-I3)0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)
