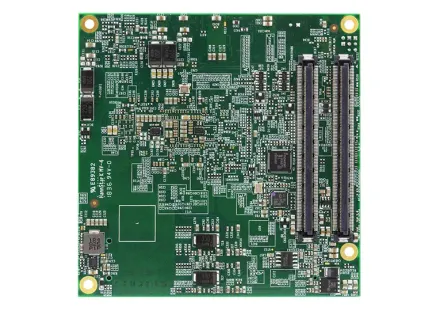

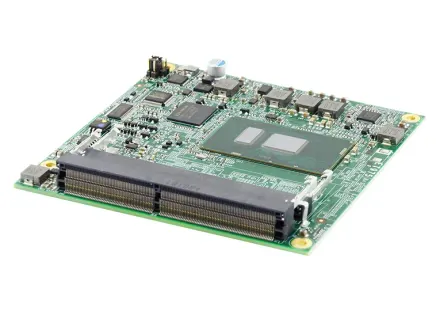

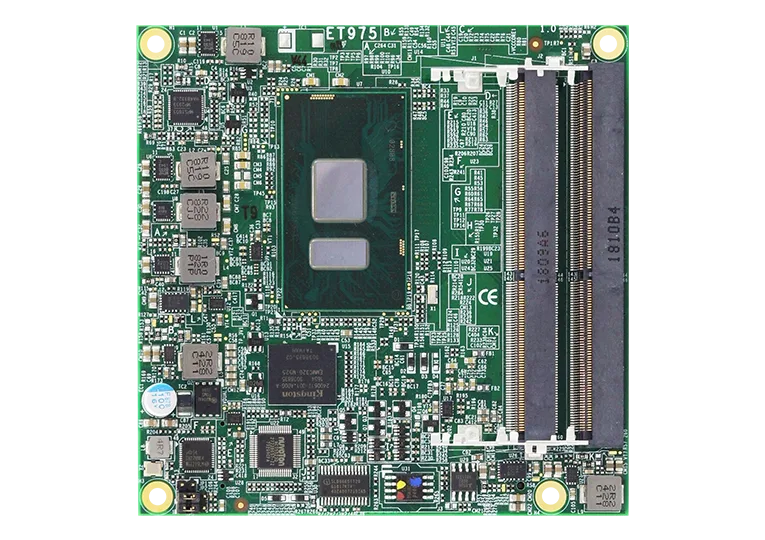

ET975

COM Express Type 6 CPU Module with 7th Gen Intel® Core™ U-Series Processor

COM Express Type 6 CPU Module with 7th Gen Intel® Core™ U-Series Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Onboard 7th Gen Intel® Core™ U-Series processors

MEMORY

2x DDR4 SO-DIMM, Max. 32GB

STORAGE

eMMC 5.0, up to 32GB (option)

DISPLAY

24-bit dual-channel LVDS on carrier board

COM ExpressCPU Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ET975 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	Onboard 7th Gen Intel® Core™ U-Series processors
PCH	N/A
Memory	2x DDR4 SO-DIMM, Max. 32GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	eMMC 5.0, up to 32GB (option)
Expansion Slots	4x PCI-E(x1), 1x PCI-E(x4)
Graphics Controller	7th Gen Intel® Core™ U-Series processor integrated graphics, Supports DVI, HDMI, DisplayPort, LVDS
Video Output	24-bit dual-channel LVDS on carrier board
Ethernet	Intel® I219LM LAN PHY
I/O Chipset	Nuvoton NCT5523D on board (supports Tx/Rx only)
Serial Port	2x COM port (Tx/Rx only))
USB 2.0	8x USB 2.0 via baseboard
USB 3.X	4x USB 3.0 via baseboard
Serial ATA	2x SATA III via carrier board
Audio	7th Gen Intel® Core™ U-Series processor built-in HD audio + Realtek ALC662 or ALC888S codec
TPM	TPM (2.0)
Others	N/A
Dimensions (L x W)	95mm x 95mm (3.74" x 3.74")
Power Consumption	Intel® i7-7600U, 2.8GHz w/ 8GB DDR4-2133 +12V: 3.47A; +5V: 1.4A +3.3V: 0.33, +5[removed] 0.10A
Operating Temperature	-20°C~60°C (-4°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10% ~ 90% (non-condensing)
