ET977

Name: ET977
Brand: IBASE Technology
SKU: ET977
Availability: InStock

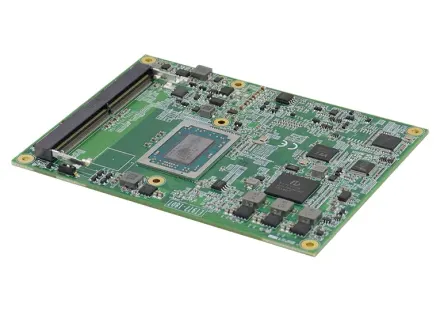

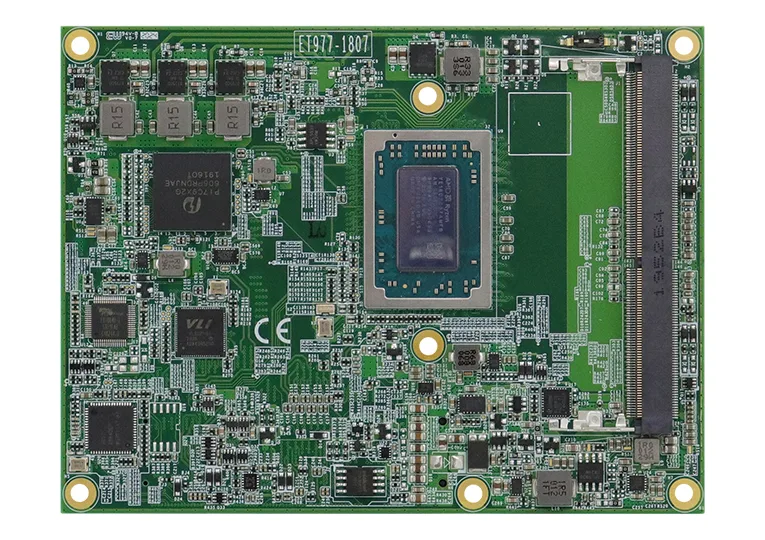

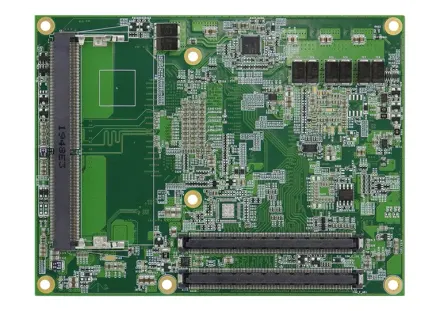

COM Express Type-6 (R3.0) CPU Module with AMD Ryzen™ Embedded V1000/ R1000 Series Processors

COM Express Type-6 (R3.0) CPU Module with AMD Ryzen™ Embedded V1000/ R1000 Series Processors. Local warranty support and engineering customization available on request.

CPU

Onboard AMD Ryzen™ Embedded V1000 / R1000 Series

MEMORY

2x DDR4 SO-DIMM, Max. 32GB

STORAGE

N/A

DISPLAY

V1000 Series: 3x DDI R1000 Series: 2x DDI 1x LVDS or 1x eDP (By option)

COM ExpressCPU Module

REQUEST QUOTE REQUEST DATASHEET

P/N # ET977

Specifications

24 ROWS

CPU	Onboard AMD Ryzen™ Embedded V1000 / R1000 Series
PCH	N/A
Memory	2x DDR4 SO-DIMM, Max. 32GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	N/A
Expansion Slots	V1000 Series: 1x PEG(8x)(Gen3), 4x PCI-E(1x)(Gen3), 2x PCI-E(1x) R1000 Series: 1x PEG(4x)(Gen3), 3x PCI-E(1x)(Gen3), 3x PCI-E(1x)
Graphics Controller	AMD Radeon™ Vega GPU integrated
Video Output	V1000 Series: 3x DDI R1000 Series: 2x DDI 1x LVDS or 1x eDP (By option)
Ethernet	Intel® I211AT or I210AT Gigabit LAN
I/O Chipset	Fintek F81804U-I
Serial Port	2x UART (Tx/Rx only)
USB 2.0	8x USB2.0 Port [USB 2.0 Hub x 3 ports, (VL822-Q7)]
USB 3.X	1x USB3.1 port (10G), 3x USB3.1 ports (VL822-Q7)
Serial ATA	2x SATA III via carrier board
Audio	AMD Ryzen™ built-in HD audio controller
TPM	TPM (2.0)
Others	Digital I/O (4in/4-out)
Dimensions (L x W)	125mm x 95mm (4.92" x 3.74")
Power Consumption	AMD V1605B w/ 2x 8GB DDR4-2133, +12V: 3.28A AMD R1606G w/ 2x 8GB DDR4-2133, +12V: 3.43A
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
