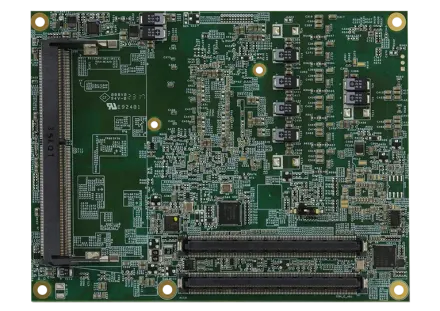

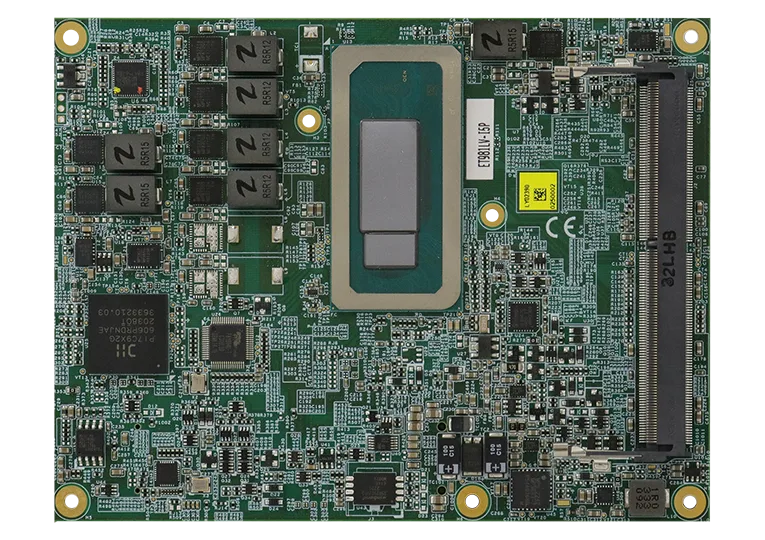

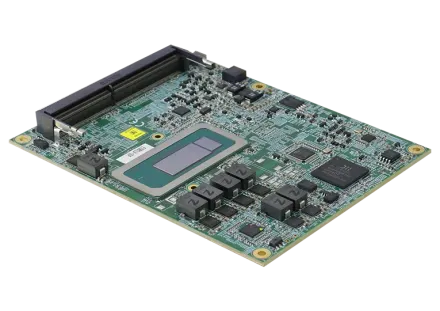

ET981

COM Express Type 6 (R3.0) CPU Module with 13th Gen Intel® Core™ i Mobile Processors

COM Express Type 6 (R3.0) CPU Module with 13th Gen Intel® Core™ i Mobile Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

BGA1744 for 13th Gen Intel® Core™ i Mobile Processors

MEMORY

2x DDR4-3200 SO-DIMM socket, Max. 64GB, ECC compatible

STORAGE

N/A

DISPLAY

HDMI, DisplayPort, VGA, LVDS or eDP on carrier board

COM ExpressCPU Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ET981 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	BGA1744 for 13th Gen Intel® Core™ i Mobile Processors
PCH	N/A
Memory	2x DDR4-3200 SO-DIMM socket, Max. 64GB, ECC compatible
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	N/A
Expansion Slots	1x PCI-E(x16), 1x PCI-E(x4), 4x PCI-E(x1) to carrier board
Graphics Controller	13th Intel® Gen P-series Core™ processors integrated graphics
Video Output	HDMI, DisplayPort, VGA, LVDS or eDP on carrier board
Ethernet	Intel® I226LM 2.5 GbERJ45 on carrier boardI226IT 2.5 GbE for I7PRE only
I/O Chipset	Fintek F81804U-I onboard
Serial Port	2x COM ports (Tx/Rx only)
USB 2.0	8x USB 2.0 via carrier board
USB 3.X	4x USB 3.2 (1Gbps-10Gbps) via carrier board
Serial ATA	2x SATA III via carrier board
Audio	Built-in HD Audio controller
TPM	TPM (2.0)
Others	Power: +12 V and +5 VSB for ATX, +12V for AT, Digital I/O (4-in/4-out), Watchdog Timer
Dimensions (L x W)	95mm x 125mm (3.74“ x 4.92“)
Power Consumption	13th Gen Intel® Core™ i7-1370PRE 1.90GHz w/ 2x DDR4 2400 4GBInnodisk M4SS-4GSSN50J-EA35 +12V:7.57A
Operating Temperature	-40°C~85°C ( -40°F~185°F) for ET981LV-I7PRE0°C~60°C ( 32°F~140°F)
Storage Temperature	-40°C~80°C (-40°F~176°F)
Relative Humidity	90% (non-condensing @60°C)
