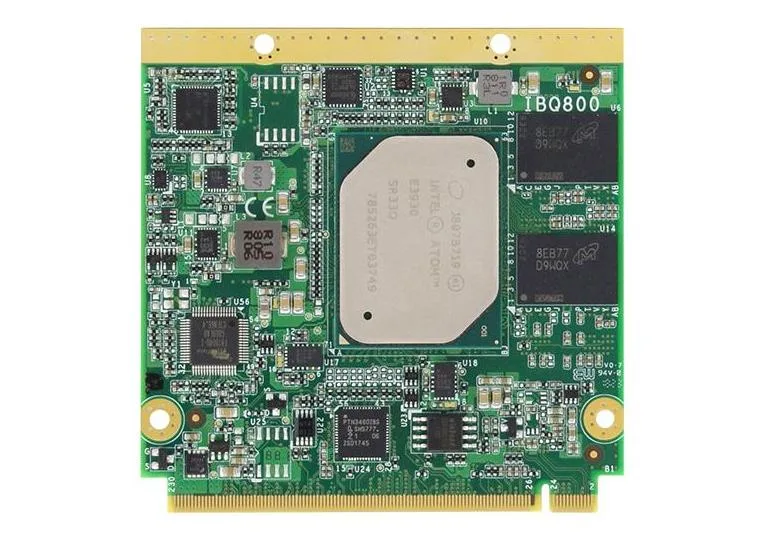

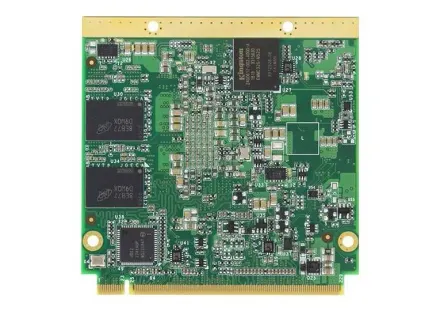

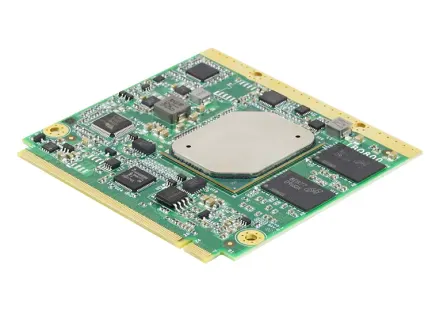

IBQ800

Qseven (R2.1) CPU Module with Intel® Atom® x7-E3950/x5-E3930 Processors

Qseven (R2.1) CPU Module with Intel® Atom® x7-E3950/x5-E3930 Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Atom® QC x5/ E3930 (1.3 GHz~1.8GHz) Intel® Atom® QC x5/ E3940 (1.6 GHz~1.8GHz) Intel® Atom® QC x7/ E3950 (1.6 GHz~2.0GHz)

MEMORY

Onboard memory, LPDDR4, Max 8GB

STORAGE

eMMC 5.0 up to 32GB (option)

DISPLAY

Supports 1x DDI port, 1x eDP or 1x dual-channel LVDS (option)

QSevenCPU Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # IBQ800 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

CPU	Intel® Atom® QC x5/ E3930 (1.3 GHz~1.8GHz) Intel® Atom® QC x5/ E3940 (1.6 GHz~1.8GHz) Intel® Atom® QC x7/ E3950 (1.6 GHz~2.0GHz)
PCH	Integrated in Intel® SoC
Memory	Onboard memory, LPDDR4, Max 8GB
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	eMMC 5.0 up to 32GB (option)
Expansion Slots	4x PCI-E(x1)
Graphics Controller	Intel® SoC integrated Gen9-LP graphics
Video Output	Supports 1x DDI port, 1x eDP or 1x dual-channel LVDS (option)
Ethernet	1x Intel® I210IT PCI-E Gigabit LAN
I/O Chipset	Fintek F81804U-I
Serial Port	1x COM port (RX/TX/RTS/CTS only
USB 2.0	4x USB 2.0, derived from Qseven CPU module
USB 3.X	3x USB 3.0, derived from Qseven CPU module
Serial ATA	2x SATA III via Carrier Board
Audio	Intel® Atom® SoC built-in HD audio controller
TPM	TPM (2.0)
Others	SD, from SoC CPU
Dimensions (L x W)	70mm x 70mm (2.75" x 2.75")
Power Consumption	Intel® Atom® E3950 1.6GHz w/ 8GB memory, DDR4 1600 +12V: 1.7121A
Operating Temperature	-40°C ~ 85°C (-40°F~185°F)
Storage Temperature	-40°C ~ 90°C (-40°F ~ 194°F)
Relative Humidity	90% (non-condensing @60°C)
