IBS-VB

Name: IBS-VB
Brand: IBASE Technology
SKU: IBS-VB
Availability: InStock

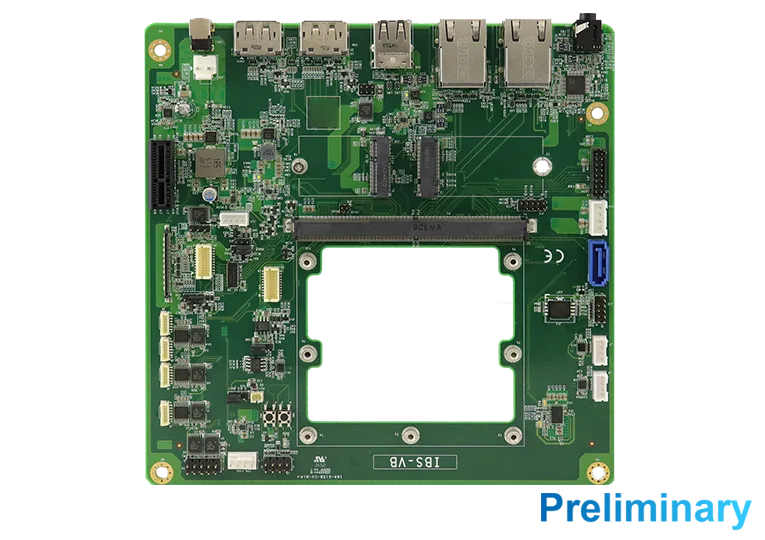

IBS Series SMARC 2.2 CPU Module Carrier Board

IBS Series SMARC 2.2 CPU Module Carrier Board. Local warranty support and engineering customization available on request.

STORAGE

-40°C~85°C (-40°F~185°F)

DISPLAY

2x DisplayPort1x LVDS or 1x eDP (By option)

ETHERNET

2x RJ45 for 2.5G Lan

OPERATING TEMP.

-20°C~70°C (-4°F~-94°F)

SMARCCarrier board

P/N # IBS-VB

23 ROWS

Form Factor	Mini-ITX
Module Interface	SMARC 2.2 connector
Expansions slots	N/A
Mini Type Slots	N/A
Video Output	2x DisplayPort1x LVDS or 1x eDP (By option)
Ethernet	2x RJ45 for 2.5G Lan
I/O Chip	N/A
Serial Port	4x 6-pin header for UART 0~3
USB 2.0	2x USB 2.0 Type A
USB 3.0/ 3.1	2x USB 3.2 Type A
Serial ATA	1x SATA III
PCIe	1x PCIe Slot
M.2	1x M.2 E-key for PCIe x1 and USB 2.01x M.2 B-key for PCIe x 1 and USB 2.0
Audio	1x 12-Pin header for Audio (HDA)1x Audio Jack for speaker/Mic (I2S)
Digital I/O	1x 5-pin (x2) header for GPIO1x 3-pin (x2) header for GPIO
Watchdog	256 levels
KB/MS	N/A
Parallel	N/A
Dimensions (L x W)	170 mm x 170 mm (6.7“ x 6.7“)
Power	DC-in (12V)DC jack or 2-pin connector for 12V DC power-in
Operating Temperature	-20°C~70°C (-4°F~-94°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Relative Humidity	10% ~ 90% (non-condensing)
