IP416

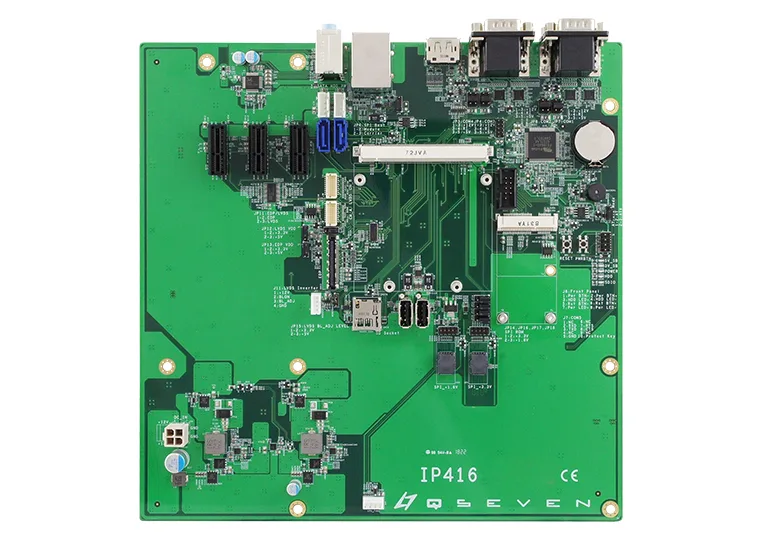

Qseven Carrier Board
Qseven Carrier Board. Local warranty support and engineering customization available on request.
STORAGE
-40°C~90°C (-40°F~194°F)
DISPLAY
1x DisplayPort,1x LVDS or 1x eDP (option)
ETHERNET
LAN: Derived from Qseven CPU module
OPERATING TEMP.
-40°C~85°C ( -40°F~185°F)
QsevenCarrier board
P/N # IP416
Specifications
21 ROWS
| Form Factor | Micro ATX |
|---|---|
| Module Interface | Qseven CPU Module (R2.1) |
| Expansions slots | 3x PCI-E(x1) slot |
| Mini Type Slots | 1x MiniPCI-E socket (full-size, reserved one hole for half-size) |
| Video Output | 1x DisplayPort,1x LVDS or 1x eDP (option) |
| Ethernet | LAN: Derived from Qseven CPU module |
| I/O Chip | Fintek F81846D-I |
| Serial Port | 4x COM RS232 & 1x COM (Tx/Rx only) from Qseven module |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0/ 3.1 | 2x USB 3.0 |
| Serial ATA | 2x SATA III |
| Audio | Built-in ALC662 or ALC888S HD audio codec |
| Digital I/O | 4-in/4-out |
| Watchdog | 256 levels |
| KB/MS | Yes |
| Parallel | N/A |
| Dimensions (L x W) | 244mm x 244mm (9.6" x 9.6") |
| Power | DC-in 12V |
| Operating Temperature | -40°C~85°C ( -40°F~185°F) |
| Storage Temperature | -40°C~90°C (-40°F~194°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
I/O — Rear panel
Front access
Where the IP416 is deployed
USE CASE
Compact OEM design-in
Space-constrained products needing a certified compute module rather than a full board.
USE CASE
Long-lifecycle carrier designs
Custom carrier boards built around a standardized, sourceable CPU module.
USE CASE
Medical & instrumentation
Low-power modules for diagnostic and portable instrument designs.
USE CASE
Robotics & automation
Compact compute modules for motion controllers and mobile robotics platforms.
