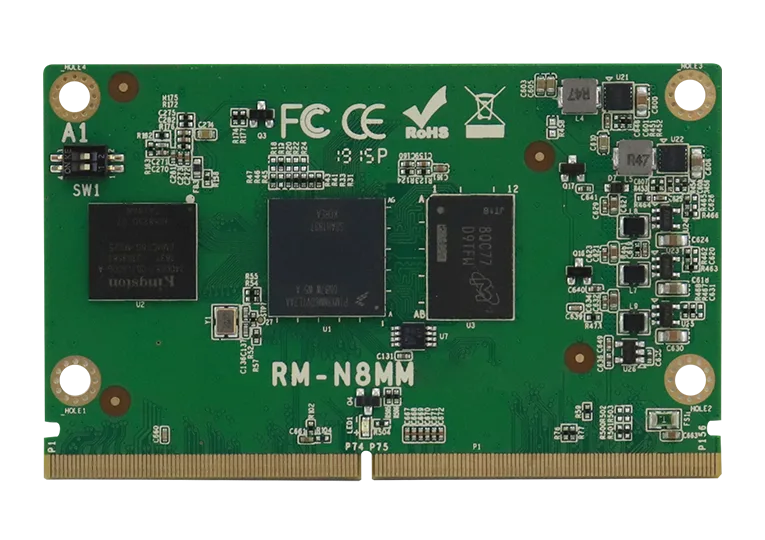

RM N8MMI Series
Wide-Temperature SMARC™ 2.0 Module with NXP ARM® Quad-core Cortex-A53/Cortex-M4 i.MX 8M Mini Processor
Wide-Temperature SMARC™ 2.0 Module with NXP ARM® Quad-core Cortex-A53/Cortex-M4 i.MX 8M Mini Processor. Local warranty support and engineering customization available on request.
Specifications
| Form Factor | SMARC™ 2.0 |
|---|---|
| Processor | NXP i.MX 8M Mini Quad-core Cortex™-A53 and Cortex™-M4 processor |
| System Memory | 2GB LPDDR4 on board |
| Flash Memory | 8GB eMMC on board |
| Display | 1x MIPI-DSI 4-lane up to 1920 x 1080 at 60Hz |
| Video Codec | • 1080p60 VP9• 1080p60 HEVC/H.265 decoder• 1080p60 AVC/H.264 Baseline, Main, High decoder• 1080p60 VP8• 1080p60 AVC/H.264 encoder• 1080p60 VP8• TrustZone support |
| Graphics | • GCNanoUltra• Vivante GC320 |
| Audio Interface | 2x I²S, 1x SPDIF |
| LAN | 1x GbE LAN |
| USB | 2x USB 2.0 with OTG interface |
| Image Capture Interface | 1x MIPI-CSI2 4-lane |
| Serial Interface | 4x UART, 2x SPI Interface |
| Media Interface | 2x High-speed MMC/SDIO (MMC 8-bit, SDIO 4-bit) |
| PCI-E | 1x PCIe (x1) Gen2 |
| SATA | N/A |
| GPIO | 12x GPIO |
| I²C | 4x I²C |
| Others | Wireless WCN3980 (option) |
| CAN Bus | N/A |
| Dimensions | 82mm x 50mm (3.2" x 2") |
| Environment | Humidity: 0 % to 90 % RH at 60° C (non-condensing)Shock: Non-operating: 1G, 15 mins (x-, y-, z-axis)Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins |
| Operating Temperature | -40°C ~ +85°C (-40°F ~ 185°F) |
| OS Support | Yocto 2.5Android 9Other OS (by request) |
| Certification | CE/ FCC Class-B |
I/O — Rear panel
Front access
Where the RM N8MMI Series is deployed
Space-constrained products needing a certified compute module rather than a full board.
Custom carrier boards built around a standardized, sourceable CPU module.
Low-power modules for diagnostic and portable instrument designs.
Compact compute modules for motion controllers and mobile robotics platforms.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
