EMBEDDED MODULES / IN STOCK

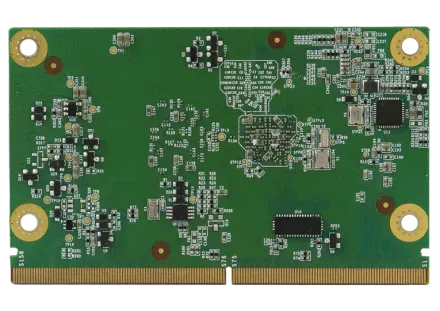

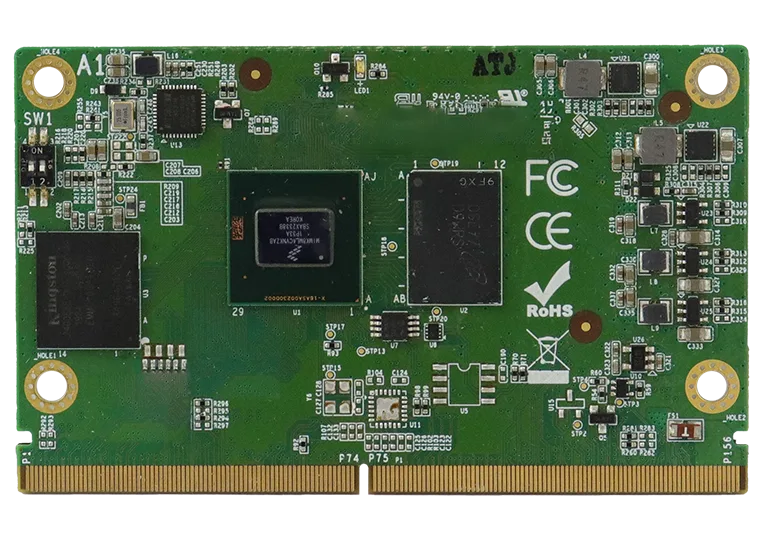

RM-N8MPL

Wide-Temperature SMARC 2.1 Module with NXP Arm® i.MX 8M Plus QuadLite Cortex-A53 Processor

Wide-Temperature SMARC 2.1 Module with NXP Arm® i.MX 8M Plus QuadLite Cortex-A53 Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

NXP i.MX 8M Plus QuadLite Cortex-A53 Processor

MEMORY

3GB LPDDR4 on board (option: 4GB/8GB)

DISPLAY

1x HDMI

ETHERNET

2x GbE with YT8531H LAN PHY on board

NXP i MX8M based SMARC…SMARC Module

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # RM-N8MPL — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

24 ROWS

Form Factor	SMARC 2.1
Processor	NXP i.MX 8M Plus QuadLite Cortex-A53 Processor
System Memory	3GB LPDDR4 on board (option: 4GB/8GB)
Flash Memory	16GB eMMC on board (up to 256GB)
Display	1x HDMI
Video Codec	N/A
Graphics	OpenGL Es 1.1, 2.0, 3.0,3.1OpenCL 3.0OpenVG 1.1OpenGL 4.0EGL 1.5Vulkan 1.1
Audio Interface	2x I²S
LAN	2x GbE with YT8531H LAN PHY on board
USB	2x USB 3.0 with OTG interface
Image Capture Interface	2x MIPI-CSI2 4-lane + 2-lane
Serial Interface	4x UART, 2x SPI
Media Interface	3x High-speed SDIO
PCI-E	1x PCIe interface
SATA	N/A
GPIO	12x GPIO
I²C	4x I²C
Others	N/A
CAN Bus	2x CAN FD
Dimensions	82mm x 50mm (3.2” x 2”)
Environment	Humidity: 0 % to 90 % RH at 60° C (non-condensing)Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis)Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins
Operating Temperature	-40°C~+85°C (-40°F ~ 185°F)
OS Support	Yocto 4.0 (sumo, kernel 5.4.70) / Android 11Other OS (by request)
Certification	CE/ FCC Class A
