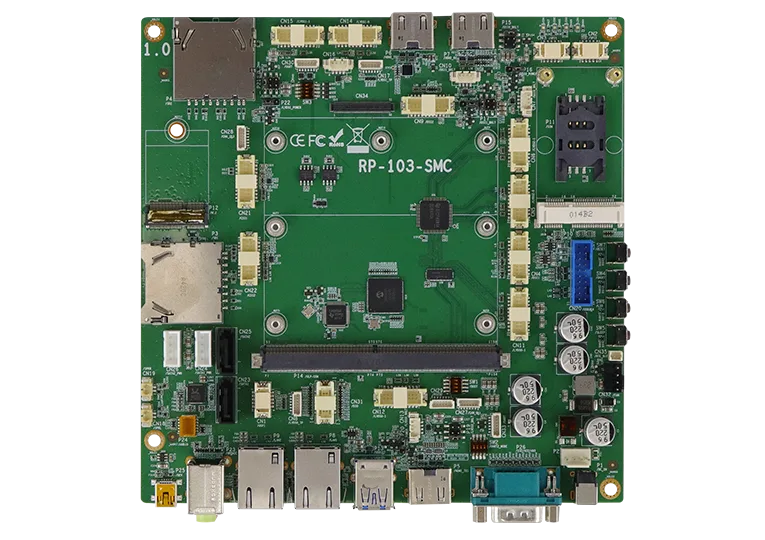

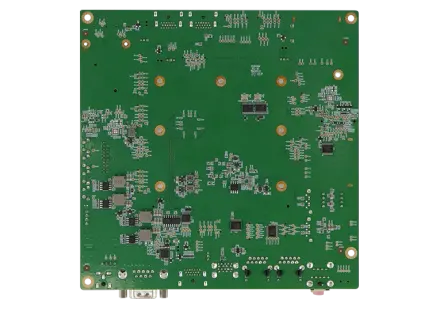

RP-103-SMC
Carrier Board for SMARC™ 2.1 CPU Module
Carrier Board for SMARC™ 2.1 CPU Module. Local warranty support and engineering customization available on request.
OPERATING TEMP.
-40°C ~ +85°C (-40°F ~ 185°F)
POWER INPUT
19V~24V DC-in jack and internal header
FORM FACTOR
Carrier Board Compliant with SMARC™ 2.1
EDGE I/O
1x 19V~24V DC-in Jack2x RJ45 Gigabit LAN (one for RM-N8 only)2x USB 3.01x OTG Micro USB 2.02x HDMI TX (one for RM-N8 only)1x HDMI RX (for RM-N8 only)1x Headphone & Mic1x COM (RS232/422/485 by switch)2x SD slot (one for RM-N8 only)
SMARC 2.1 Carrier BoardCarrier Board for SMARC…
P/N # RP-103-SMC
Specifications
10 ROWS
| Form Factor | Carrier Board Compliant with SMARC™ 2.1 |
|---|---|
| Edge I/O | 1x 19V~24V DC-in Jack2x RJ45 Gigabit LAN (one for RM-N8 only)2x USB 3.01x OTG Micro USB 2.02x HDMI TX (one for RM-N8 only)1x HDMI RX (for RM-N8 only)1x Headphone & Mic1x COM (RS232/422/485 by switch)2x SD slot (one for RM-N8 only) |
| Internal I/O | 1x 19V~24V DC-in header1x 12V Fan header4x CAN bus 2.0b (three for RM-N8 only)3x 18/24-bit dual channel LVDS (two for RM-N8 only)4x LCD backlight2x MIPI-CSI2 (one for RM-N8/RM-N8M only)2x MIPI-DSI (one for RM-N8 only)2x USB 3.012x GPIOs2x RS232 (RX/TX only)2x I²C2x SATA III and power (one for RM-N8 only)1x I²S1x QSPI1x Full-size Mini PCI-E1x SIM socket1x M.2 E-Key (2230)1x Speaker out (R/L)1x RTC battery1x 4-wire UART |
| Jumpers, Switches & Buttons | 1x Boot select switch1x I/O and display select switch1x Power button1x Reset button1x LID button1x Sleep button4x Backlight power (3V3/5V/12V) jumper3x LCD power 3V3/5V jumper |
| Power Input | 19V~24V DC-in jack and internal header |
| Dimensions | 170mm x 170mm (6.7" x 6.7") |
| Environment | Humidity: 0 % to 90 % RH at 60° C (non-condensing)Shock: Non-Operating: 1G, 15 mins (x-, y-, z-axis)Vibration: Non-operating: 3 Hz to 500 Hz, 15 mins |
| Operating Temperature | -40°C ~ +85°C (-40°F ~ 185°F) |
| OS Support | Depends on CPU Module |
| Certification | CE/FCC Class-B |
