ACS200
Advanced Compact System with Intel® Atom® x7000E Series / N-series / Core™ 3 N355 Processors
Advanced Compact System with Intel® Atom® x7000E Series / N-series / Core™ 3 N355 Processors. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBP-210-N97/ MBP-210-N150/ MBP-210-N305/ MBP-210-N355/ MBP-210-7835 |
|---|---|
| CPU Type | Intel® Atom™ N97 Processor (4 Cores) up to 3.6GIntel® Atom™ N150 Processor (4 Cores) up to 3.6GIntel® Core™ i3 N305 Processor (8 Cores) up to 3.8GIntel® Core™ 3 N355 Processor (8 Cores) up to 3.9GIntel® Atom™ X7835RE Processor (8 Cores) up to 3.6G |
| System Speed | N97/N150 and X7835RE- up to 3.6GHz, i3-N305 up to 3.8GHz, N355 up to 3.9GHz |
| Memory | 1x DDR5-4800 SO-DIMM, Max.16GB |
| Front Panel External I/O | 1x power button1x Clear CMOS buttonOptional 4x Power COM #3~#6 Pin9 Jumper select 0, 5V, 12V1x Digital I/O (4-in/4-out), 5V and GND1x Nano SIM slot4x Antenna holes |
| Rear Panel External I/O | 2x USB 3.24x USB 2.01x HDMI2x DB9 for COM#1 (RS232/422/485),2x LAN1x 2-pin DC-in terminal block for 9V (-5%) ~ 36V (+5%)2x Antenna holes |
| Expansion Slots | 3x M.2 sockets (B-key/ E-key and M-key) |
| Storage | 1x M.2 M-key (2280) |
| Construction | Aluminum & steel |
| Chassis Color | Black/Gray |
| Mounting | VESA 75x75 and 100x100 mm, Optional DIN-Rail kit |
| Dimensions | 242.2mm (W) x 110mm (D) x 54.15mm (H)95.3” (W) x 43.3” (D) x 21.31” (H) |
| Weight | 1.65 kg |
| Operating Temperature | N97, N305 and N305: -20°C~50°C (-4°F~122°F)N150: -20°C~70°C (-4°F~158°F) *with airflowx7835RE: -30°C~60°C (-22°F~140°F) *with airflow |
| Storage Temperature | -30~80°C (-22°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class-B |

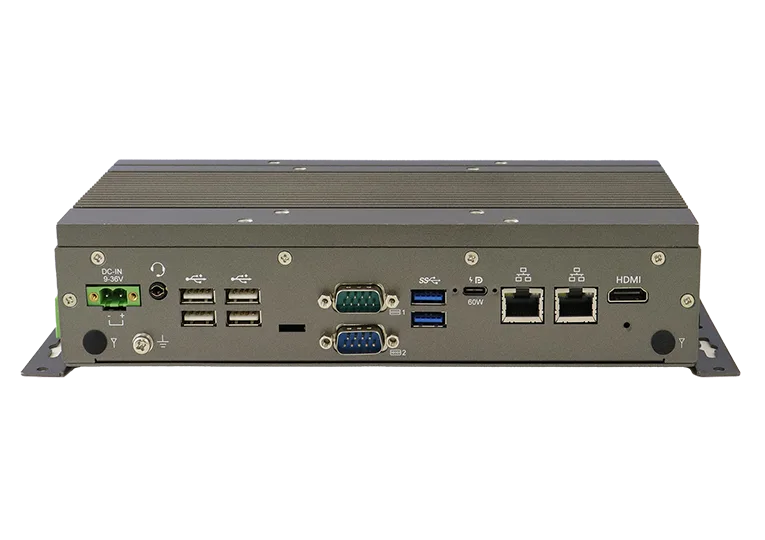

I/O — Rear panel

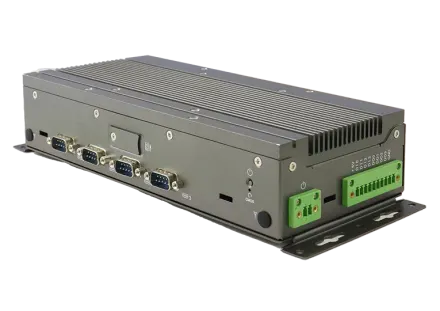

Front access
Where the ACS200 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
