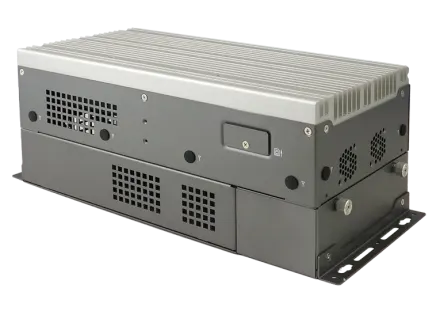

ACS413

Name: ACS413
Brand: IBASE Technology
SKU: ACS413
Availability: InStock

Advanced Compact System with 13th Gen Intel® Core™ i7/i5/i3/U300E Processors

Advanced Compact System with 13th Gen Intel® Core™ i7/i5/i3/U300E Processors. Local warranty support and engineering customization available on request.

CPU

Intel® U300E Processor (Five-Core @ 4.3GHz)Intel® Core™ i3-1315UE Processor (Six-Core @ 4.5GHz)Intel® Core™ i5-1335UE Processor (Ten-Core @ 4.5GHz)Intel® Core™ i7-1365UE Processor (Ten-Core @ 4.9GHz)

MEMORY

2x DDR5-4800 SO-DIMM, Max .96GB

STORAGE

2x M.2 M-key (2280) NVMe Supports RAID Mode, 1x 2.5" HDD Removable

OPERATING TEMP.

-10°C ~ 60°C (14°F ~ 140°F) *with airflow-10°C ~ 50°C (14°F ~ 122°F) without airflow

ACS Series Advanced Compact…Edge Computing Wide…

REQUEST QUOTE REQUEST DATASHEET

P/N # ACS413

Manual

Specifications

19 ROWS

System Mainboard	MBE330
CPU Type	Intel® U300E Processor (Five-Core @ 4.3GHz)Intel® Core™ i3-1315UE Processor (Six-Core @ 4.5GHz)Intel® Core™ i5-1335UE Processor (Ten-Core @ 4.5GHz)Intel® Core™ i7-1365UE Processor (Ten-Core @ 4.9GHz)
System Speed	Intel® Raptor Lake U300E Processor (Five-Core up to 4.3GHz)Intel® Core™ i3-1315UE Processor (Six-Core up to 4.5GHz)Intel® Core™ i5-1335UE Processor (Ten-Core up to 4.5GHz)Intel® Core™ i7-1365UE Processor (Ten-Core up to 4.9GHz)
Memory	2x DDR5-4800 SO-DIMM, Max .96GB
Front Panel External I/O	4x antenna holes2x Nano SIM slots

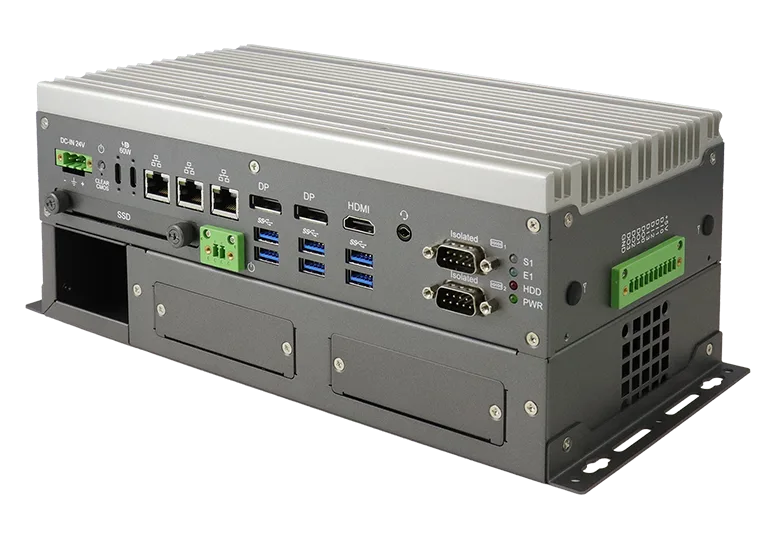

Rear Panel External I/O	6x USB 3.2 Gen.12x USB Type-C (DP Alternate mode) PD Up to 60W per port2x isolated COM3x 2.5GbE2x DP++ 1.41x HDMI 2.01x Audio combo jack3-pin bare-wire DC-In, 24V1x remote power switch connector1x power button1x Clear CMOS button
Expansion Slots	2x M.2 2280 M-key sockets1x M.2 2230 E-key socket [supports USB 2.0 & PCIe x1] (for Wi-Fi/BT module)1x M.2 3052 B-key socket [supports USB 2.0/3.0 & PCIe x1] (for 4G/5G)2x PCIe (x4)
Storage	2x M.2 M-key (2280) NVMe Supports RAID Mode, 1x 2.5" HDD Removable
Construction	Aluminum & SGCC
Chassis Color	Silver / Gray
Mounting	VESA 100 x 100 mm, wall mount, optional DIN-rail kit
Dimensions	275mm (W) x 140mm (D) x 117mm (H)10.83” (W) x 5.51” (D) x 4.6” (H)
Weight	3.5 kg
Operating Temperature	-10°C ~ 60°C (14°F ~ 140°F) *with airflow-10°C ~ 50°C (14°F ~ 122°F) without airflow
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	5% ~ 90% @ 45°C (non-condensing)
Vibration	Operating: 3Grms / 5~500Hz
Shock	Operating : 20G / 11msNon-operating : 40G / 11ms
Certification	CE/LVD/FCC Class B
