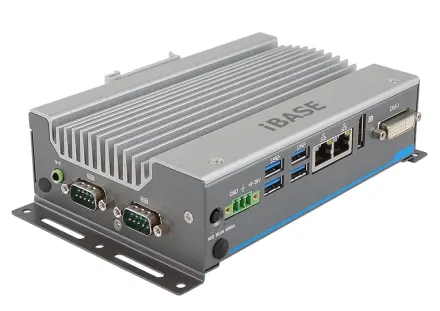

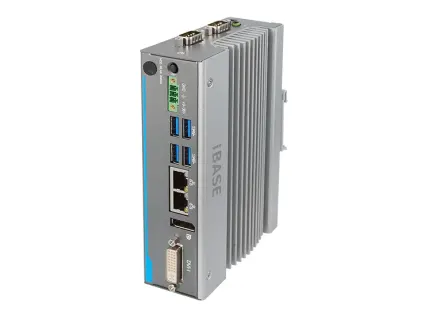

AGS100T

Name: AGS100T
Brand: IBASE Technology
SKU: AGS100T
Availability: InStock

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7/x5, Pentium® & Celeron® Processors

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7/x5, Pentium® & Celeron® Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors

MEMORY

1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB

STORAGE

1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD

OPERATING TEMP.

For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F)

AGS Series IoT Gateway Edge…Edge Computing Wide…

REQUEST QUOTE REQUEST DATASHEET

P/N # AGS100T

Specifications

21 ROWS

System Mainboard	IB802T (F-1 Stepping)
CPU Type	Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors
System Speed	Up to 2.5GHz
Memory	1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB
Rear Panel External I/O	1x DVI-I + 1x DisplayPort4x USB 3.0 ports2x RJ45 Gigabit Ethernet port3x LED indicators (HDD, WLAN, WWAN)1x Black power button with Blue LED1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole for WLAN module
Left Panel External I/O	2x RS232/422/485 port for COM#1/COM#2 1x Antenna hole for WLAN module 1x Line-out (AGS100 for 2W mono speaker, AGS100T for stereo output )
Right Panel External I/O	1x SIM card slot
Expansion Slots	1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E + SATA) 1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 + PCI-E) 1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 + SATA)
Storage	1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD
Construction	Aluminum & steel
Chassis Color	Silver & Gray

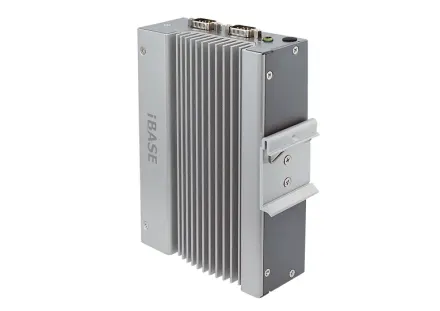

Mounting	DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included)
Dimensions	160mm (W) x 110mm (D) x 44mm (H)6.3" (W) x 4.33" (D) x 1.73" (H)
Weight	1 kg
Operating Temperature	For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Operatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64) Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock	Operating: 30G/11 ms Duration (with MIL-STD-810G) Non-operating: 40G/11 ms Duration (with MIL-STD-810G)
Certification	CE / LVD / FCC Class B / CCC (AGS100 Only) / UL
Operating Systems	N/A
