AGS101T

Compact IoT Gateway Edge Computing System with Intel® Atom® x6212RE/ x6414RE Processors

Compact IoT Gateway Edge Computing System with Intel® Atom® x6212RE/ x6414RE Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)

MEMORY

1x DDR4 SO-DIMM, Max. 16GB

STORAGE

1x mSATA socket (Mini-PCI-E)1x 2.5” SSD

OPERATING TEMP.

-20°C~70°C (-4°F~158°F)

AGS Series IoT Gateway Edge…Edge Computing Wide…

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # AGS101T — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

20 ROWS

System Mainboard	IB803T
CPU Type	Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
System Speed	Up to 1.5GHz
Memory	1x DDR4 SO-DIMM, Max. 16GB

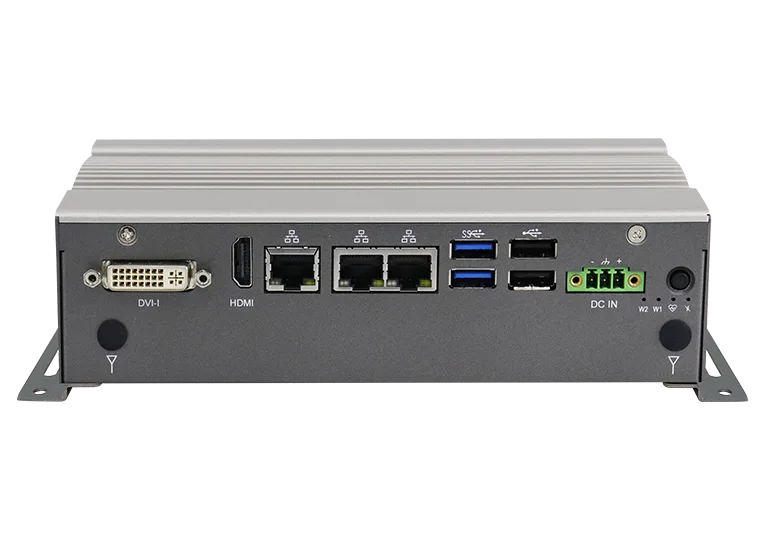

Rear Panel External I/O	1x DVI-1 & 1x HDMI2x USB 3.1 ports, 2x USB 2.0 port3x RJ45 2.5G Ethernet port4x LED indicators (HDD, WLAN, WWAN)1x power button with Green LED1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole for WLAN module

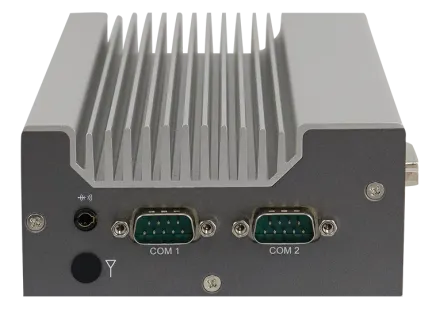

Left Panel External I/O	2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out

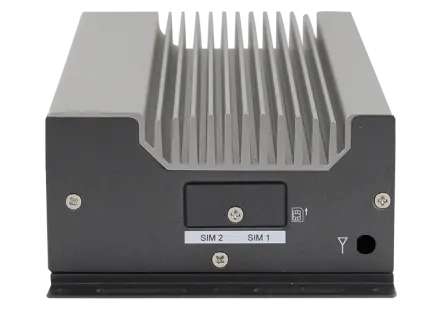

Right Panel External I/O	2x SIM card slot1x Antenna hole for WLAN module
Expansion Slots	1x Full-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + SATA)1x M.2 B-Key socket (USB 3.0 + PCI-E)
Storage	1x mSATA socket (Mini-PCI-E)1x 2.5” SSD
Construction	Aluminum & steel
Chassis Color	Silver & Gray

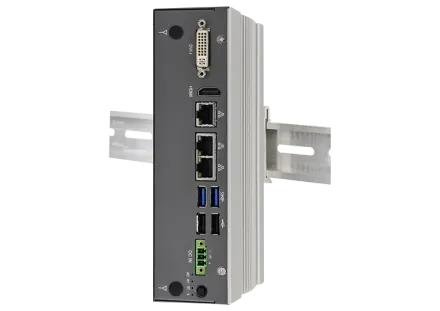

Mounting	DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included)
Dimensions	218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit8.58”(W) x 4.33mm(D) x 2.05mm (H)
Weight	1.05 kg
Operating Temperature	-20°C~70°C (-4°F~158°F)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	5~90% @ 60°C, (non-condensing)
Vibration	Operatiing: 1 Grms/ 3~500 Hz / random operation (with IEC 60068-2-64)
Shock	Operating: 30G/11 ms DurationNon-operating: 40G/11 ms Duration
Certification	CE / LVD / FCC Class B
