AGS102

Name: AGS102
Brand: IBASE Technology
SKU: AGS102
Availability: InStock

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7/x5, Pentium® & Celeron® Processors

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7/x5, Pentium® & Celeron® Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors

MEMORY

1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB

STORAGE

1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD

OPERATING TEMP.

For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F)

AGS Series IoT Gateway Edge…Edge Computing Wide…

REQUEST QUOTE REQUEST DATASHEET

P/N # AGS102

Specifications

21 ROWS

System Mainboard	IB801/ IB802T (F-1 Stepping)
CPU Type	Intel® Atom® x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200/ Celeron® N3350 Series Processors
System Speed	Up to 2.5GHz
Memory	1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB

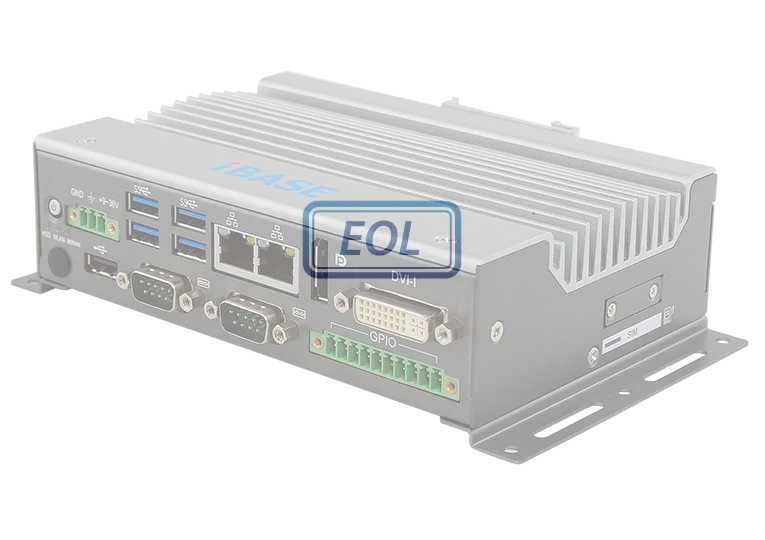

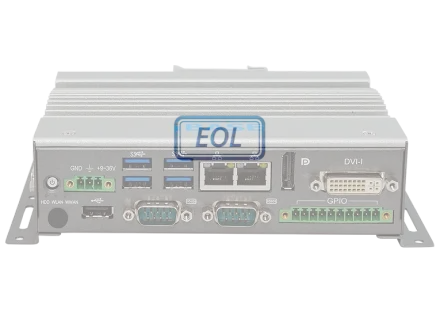

Rear Panel External I/O	1x DVI-I + 1x DisplayPort connector4x USB 3.0 ports, 1x USB 2.0 port2x RJ45 Gigabit Ethernet port3x LED indicators (HDD, WLAN, WWAN)1x power button with Green LED (Silver power button with Green LED for AGS102, Black power button with Blue LED for AGS102T)1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole for WLAN moduleAGS102T: 2x RS232/422/485 ports for COM#3/COM#4AGS102: 2x RS232 ports for COM#3/COM#41x 4-in & 4-out GPIO with isolation

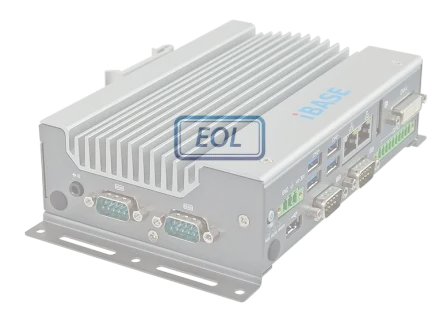

Left Panel External I/O	2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out (AGS102 for 2W mono speaker, AGS102T for stereo output )

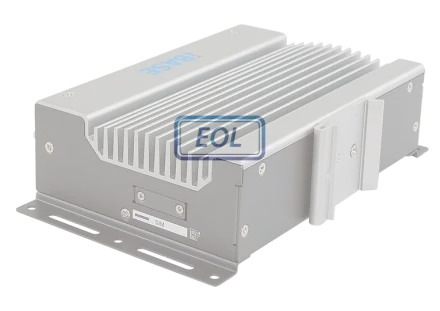

Right Panel External I/O	1x SIM card slot
Expansion Slots	1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)1x 2230 M.2 E-key socket for WLAN & BT (USB 2.0 + PCI-E)1x 3042 M.2 B-key socket for WWAN & SSD (USB 2.0 + SATA)
Storage	1x mSATA socket (Mini-PCI-E)1x 2242 M.2 B-Key socket for SSD
Construction	Aluminum & steel
Chassis Color	Silver & Gray

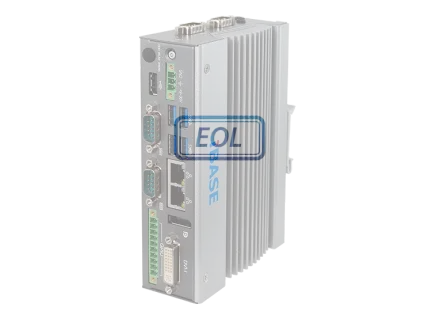

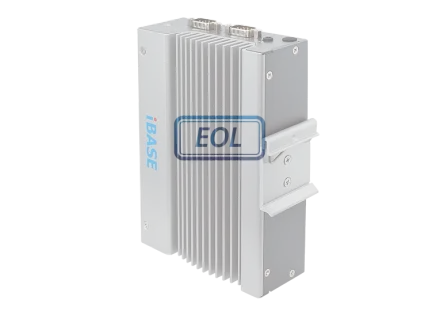

Mounting	DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included)
Dimensions	160mm (W) x 110mm (D) x 44mm (H)6.3" (W) x 4.33" (D) x 1.73" (H)
Weight	1kg
Operating Temperature	For E-series CPU: -40°C~70°C (-40°F~158°F)For N-series CPU: -20°C~60°C (-4°F~140°F)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	Operatiing: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)Non-Operating: 3.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock	Operating: 30G/11 ms Duration (with MIL-STD-810G)Non-operating: 40G/11 ms Duration (with MIL-STD-810G)
Certification	CE / LVD / FCC Class A
Operating Systems	N/A
