AGS103T

Name: AGS103T
Brand: IBASE Technology
SKU: AGS103T
Availability: InStock

Compact IoT Gateway Edge Computing System with Intel® Atom® x6414RE/x6212RE Processors

Compact IoT Gateway Edge Computing System with Intel® Atom® x6414RE/x6212RE Processors. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)

MEMORY

1x DDR4 3200 SO-DIMM. Max. 16GB

STORAGE

1x Mini PCI-E slot (mSATA SSD),1x 2.5’’ SSD (AGS103TS)

OPERATING TEMP.

-20°C~70°C (-4°F~158°F)

AGS Series IoT Gateway Edge…Edge Computing Wide…

REQUEST QUOTE REQUEST DATASHEET

P/N # AGS103T

Specifications

21 ROWS

System Mainboard	IB803T
CPU Type	Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
System Speed	Up to 1.5GHz
Memory	1x DDR4 3200 SO-DIMM. Max. 16GB

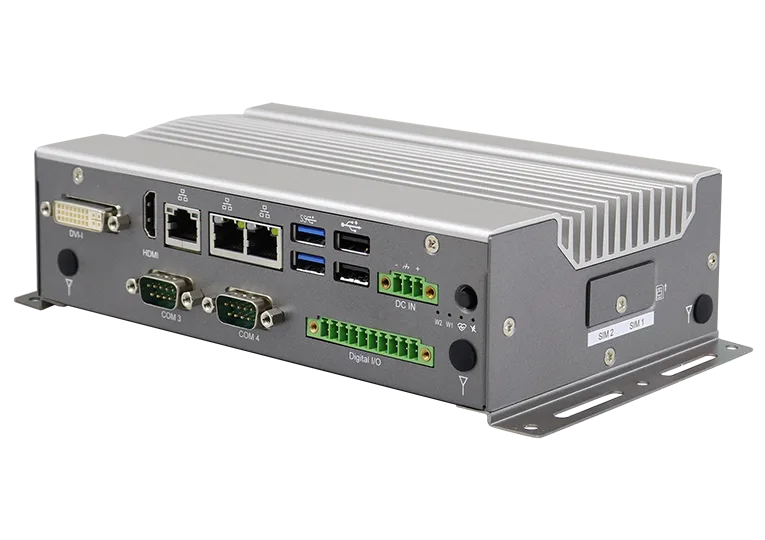

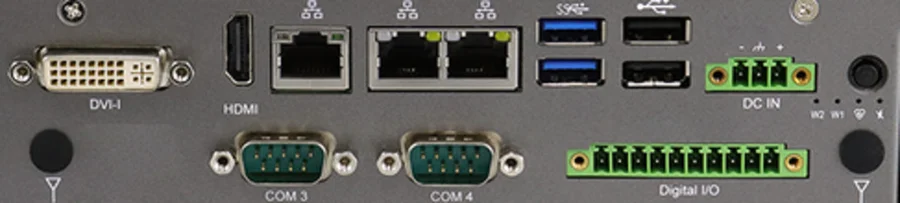

Rear Panel External I/O	1x DVI-I + 1x HDMI2x USB 3.1 ports, 2x USB 2.0 port3x RJ45 2.5G Ethernet port4x LED indicators (GPIO, WLAN, WWAN)1x power button with Green LED1x 3-pin DC-in terminal block for 9V-36V2x Antenna hole for WLAN module2x RS232/422/485 ports for COM#3/COM#41x 4-in & 4-out GPIO

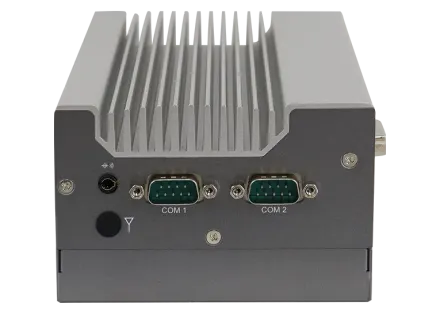

Left Panel External I/O	2x RS232/422/485 ports for COM#1/COM#21x Antenna hole for WLAN module1x Line-out/ Mic-in
Right Panel External I/O	2x SIM card slot1x Antenna hole for WLAN module
Expansion Slots	1x Full-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + SATA)1x M.2 B-Key socket (USB 3.0 + PCI-E)
Storage	1x Mini PCI-E slot (mSATA SSD),1x 2.5’’ SSD (AGS103TS)
Construction	Aluminum & steel
Chassis Color	Silver & Gray

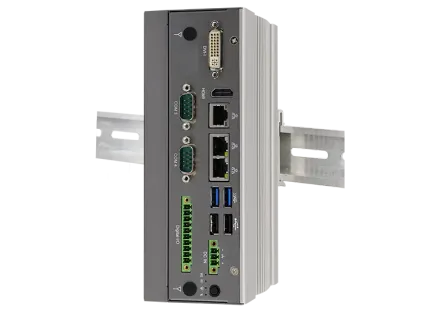

Mounting	DIN-rail mounting (DIN-rail mount kit included)Desktop or wall mounting (wall mount kit included)
Dimensions	AGS103T :218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit8.58”(W) x 4.33mm(D) x 2.05mm (H)AGS103TS :218mm(W) x 110mm(D) x 73mm (H) w/ Wall-mount kit8.58”(W) x 4.33mm(D) x 2.87mm (H)
Weight	1.2kg
Operating Temperature	-20°C~70°C (-4°F~158°F)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	5~90% @ 60°C, (non-condensing)
Vibration	Operating: 1 Grms/ 3~500 Hz / random operation (with IEC 60068-2-64)
Shock	Operating: 30G/11 ms DurationNon-operating: 40G/11 ms Duration
Certification	CE / LVD / FCC Class A
Operating Systems	Win10 and Linux Ubuntu
