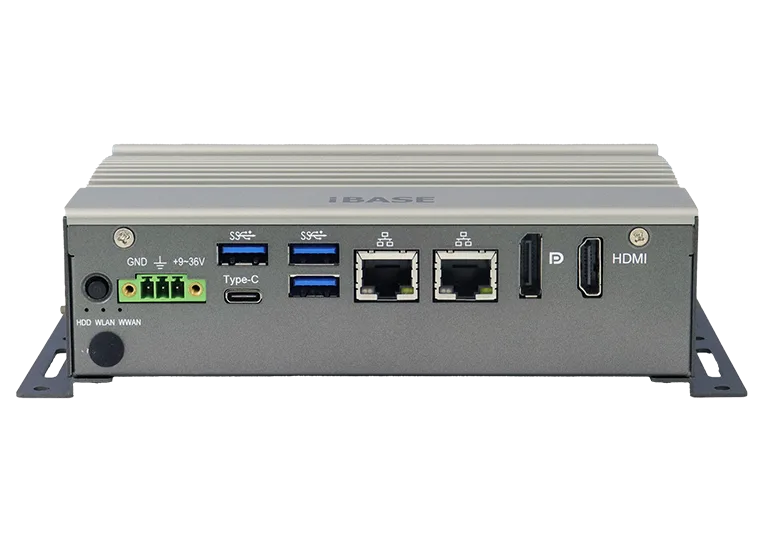

AGS104L

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7433RE/x7211RE Processors

Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7433RE/x7211RE Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7433RE (4-Core, 1.5GHz/2.7GHz, 2MB cache, 9W TDP)Intel® Atom® x7211RE (2-Core, 1.0GHz/2.9GHz, 2MB cache, 6W TDP)

MEMORY

1x DDR5-4800 SO-DIMM, Max. 16GB

STORAGE

1x Mini PCI-E socket mSATA SSD1x M.2 B-Key for SATA SSD

OPERATING TEMP.

-40°C~70°C (-40°F~158°F)

AGS Series IoT Gateway Edge…Edge Computing Wide…

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # AGS104L — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

21 ROWS

System Mainboard	MBE104T-7433-1 / MBE104T-7211-1
CPU Type	Intel® Atom® x7433RE (4-Core, 1.5GHz/2.7GHz, 2MB cache, 9W TDP)Intel® Atom® x7211RE (2-Core, 1.0GHz/2.9GHz, 2MB cache, 6W TDP)
System Speed	Up to 2.9GHz
Memory	1x DDR5-4800 SO-DIMM, Max. 16GB

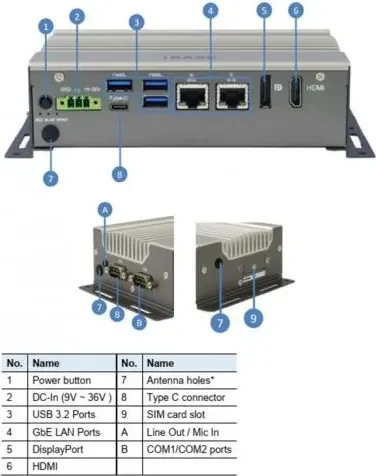

Rear Panel External I/O	1x DisplayPort + 1x HDMI3x USB 3.2 ports, 1x USB 3.2(Type-C)2x RJ45 2.5G Ethernet port3x LED indicators (HDD, WLAN, WWAN)1x power button with Green LED1x 3-pin DC-in terminal block for 9V-36V1x Antenna hole
Left Panel External I/O	2x RS232/422/485 ports for COM#1/COM#21x Antenna hole1x Line-out/ Mic-in
Right Panel External I/O	Dual SIM card slots with cover1x Antenna hole
Expansion Slots	1x Full-size Mini PCIe socket (USB 2.0 + PCIe(1x) + mSATA)1x 2230 M.2 E-key socket (USB 2.0 + PCIe)1x 3052 M.2 B-key socket (USB 3.2 + SATA)
Storage	1x Mini PCI-E socket mSATA SSD1x M.2 B-Key for SATA SSD
Construction	Aluminum + SGCC
Chassis Color	Silver & Gray
Mounting	Desktop & wall mounting & DIN-rail mounting
Dimensions	160mm(W) x 110mm(D) x 44mm(H)6.3”(W) x 4.33”(D) x 1.73”(H)
Weight	1.0 kg
Operating Temperature	-40°C~70°C (-40°F~158°F)
Storage Temperature	-40°C~80°C (-40°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating: 2Grms / 5~500HzNon-operating: 1Grms / 5~500Hz
Shock	Operating: 30G/11 ms DurationNon-operating: 40G/11 ms Duration
Certification	CE/ FCC Class B/ LVD
Operating Systems	Windows 11 LTSC and Linux Ubuntu
