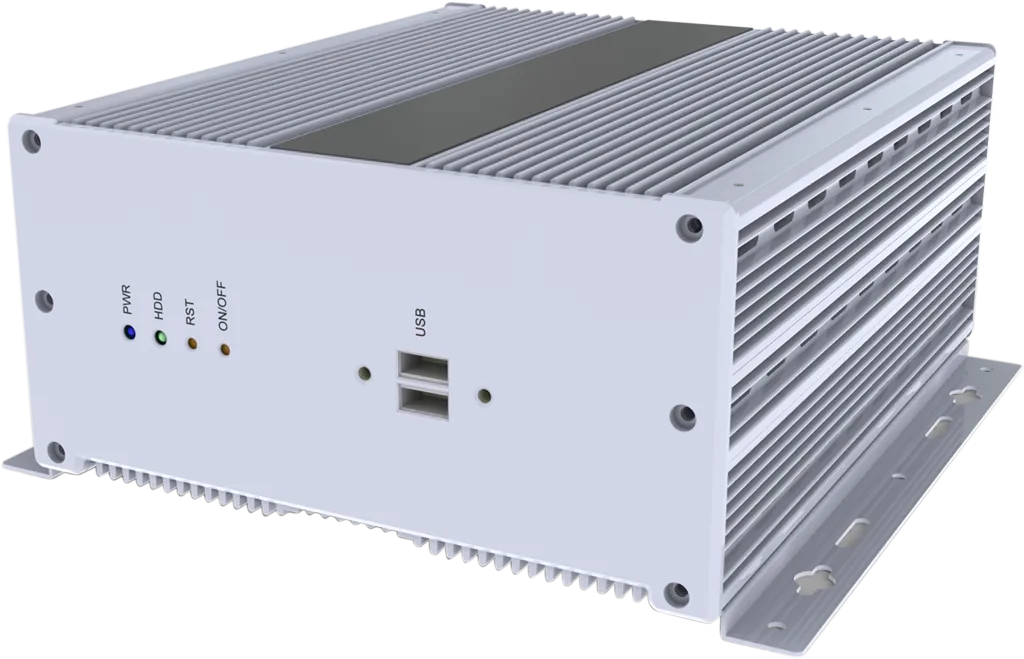

AMI311

Système AMI311-970 - Embedded sans ventilateur — expansion slot for MI970F Mini-ITX Motherboard

Système AMI311-970 - Embedded sans ventilateur — expansion slot for MI970F Mini-ITX Motherboard. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

3rd Generation Intel® Core™ i series mobile CPU, rPGA988B

MEMORY

2x DDR3 SO-DIMM, Max 16GB

STORAGE

1x 2.5” storage device (SATA II or SATAIII interface), 100GB industrial-grade HDD

OPERATING TEMP.

0°C~ 45°C (32°F~113°F)

Legacy catalogueIBASE Technology

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT AMI311 — IBASE Technology

Specifications

18 LIGNES

System Mainboard	MI970F
CPU Type	3rd Generation Intel® Core™ i series mobile CPU, rPGA988B
System Speed	Up to 2.8GHz
Memory	2x DDR3 SO-DIMM, Max 16GB
Construction	Aluminum
Chassis Color	Silver (Aluminum)
Front Panel External I/O	Power LED, HDD LED, Power button, Reset button, 2x USB2.0 ports
Rear Panel External I/O	1x Dual COM port · 1x DVI-I+DVI-D connector · 1x Dual USB3.0+DisplayPort connector · 2x Dual USB2.0 + RJ45 connector · 1x Audio jack (3 port) · 1x 2.5” Removable HDD Tray · 1x PCI-E (x16) expansion slot
Storage	1x 2.5” storage device (SATA II or SATAIII interface), 100GB industrial-grade HDD
Power Supply	120W power adaptor
Mounting	Desktop or wall mount (wall mount kit included)
Certification	CE, FCC
System Dimensions	231mm(L) x 199mm(W) x 97.75mm(H)
System Operating Temperature	0°C~ 45°C (32°F~113°F)
System Storage Temperature	-20° ~ 80°C (-4°F~176°F)
System Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	SSD: 5 grms / 5~500Hz / random operation
HDD	0.25 grms / 5~500Hz / random operation

Features

7 LIGNES

Feature 1	Supports 3rd Generation Intel® Core™ i mobile processors
Feature 2	iSMART - for EuP/ErP power saving, auto-scheduler and power resume
Feature 3	1x removable 2.5” storage device
Feature 4	1x PCI-E(x16) graphics card expansion slot
Feature 5	Available in black color
Feature 6	Fanless operation
Feature 7	Wall mount kit included

Ordering Information

3 LIGNES

AMI311-970-3610ME	- Aluminum System, Fanless Design w/ Intel® Core™i5-3610ME(2.7GHz), 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power adaptor
AMI311-970-3120ME	- Aluminum System, Fanless Design w/ Intel® Core™i3-3120ME(2.4GHz), 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power adaptor
AMI311-970-1020E	- Aluminum System, Fanless Design w/ Intel® Celeron® 1020E(2.2GHz), 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power adaptor
