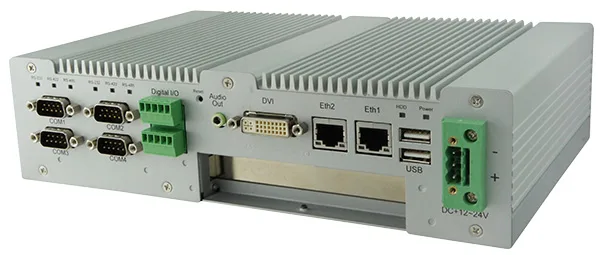

AMS100807
Fanless system, NM10+D2550 Intel® Atom™ Processor D2550 Based Fanless System
Fanless system, NM10+D2550 Intel® Atom™ Processor D2550 Based Fanless System. Local warranty support and engineering customization available on request.
Specifications
| CPU | Intel® Atom™ Processor D2550 1.86 GHz, 1MB Cache |
|---|---|
| Chipset | Intel® NM10 PCH |
| Memory | 1x DDR3 non-ECC SODIMM, 800 MHz~1066 MHz, up to 4GB |
| Network | 2x Realtek 8111E-VL GbE controller |
| Expansion Slots | 1x PCI or 1x PCI -E(x16) (x1 signal) · 1x Mini PCI-E |
| Storage | 1x 2.5” SSD drive bay, 1x CFast socket |
| VGA | CPU built-in Graphics Core · 1x DVI-I, 1x 24-bit single channel LVDS |
| LED | Power / HDD Activity · RS232 / RS422 / RS485 Indicator |
| Dimensions | 250mm(W) x 64mm(H) x 162mm(D) |
| Power Supply | +12~24V DC-In · Terminal Block or Power Jack DIN-IN |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Relative Humidity | 5~95% @45°C (non-condensing) |
| Certification | CE, FCC |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Relative Humidity | 5~95% @45°C (non-condensing) |
| Certification | CE, FCC |
I/O — Rear panel
Front access
Where the AMS100807 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
