ASB200908
ASB200-908-Fanless Slim Type System /w Intel® CoreTM i5 4300U processor (1.9GHz) IB908AF
ASB200-908-Fanless Slim Type System /w Intel® CoreTM i5 4300U processor (1.9GHz) IB908AF. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | IB908AF-4300 |
|---|---|
| CPU Type | Intel® CoreTM i5 4300U processor (1.9GHz) |
| System Speed | Up to 2.9GHz |
| Memory | 2x 2GB DDR3L-1600 Memory |
| Construction | Aluminum and Steel |
| Chassis Color | Black |
| Front Panel External I/O | 1x Power button · 2x USB2.0 · 1x CFAST socket · 1x HDD LED |
| Rear Panel External I/O | 4x COM (1x RS-232/422/485 + 3x RS-232) · 1x DC Jack with lock or terminal block (12V~24V DC) · 2x USB 3.0 · 1x DVI-I · 2x RJ-45 GbE |
| Storage | 1x 2.5" HDD or SSD |
| Power Supply | Optional 60W power adaptor |
| Mounting | Desktop or wall mount (wall mount kit included) |
| Dimensions | 180mm(W) x 150mm(D) x 66mm(H) |
| Operating | 20G / 11ms |
| Non-operating | 40G / 11ms · Certification · CE / LVD / FCC Class B |
| Operating Temperature | 0°C~45°C (With HDD) · 0°C~60°C (With SSD) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Operating | 0.25Grms / 5~500Hz |
| Non-operating | 1Grms / 5~500Hz · Shock |
| Operating | 20G / 11ms |
| Non-operating | 40G / 11ms |
Features
| Feature 1 | Fanless system supports IB908AF-4300 |
|---|---|
| Feature 2 | 3.5-inch SBC |
| Feature 3 | Onboard Intel® CoreTM i5 U-series processor |
| Feature 4 | iSMART- for auto-scheduler and power resume |
| Feature 5 | Supports 1x Mini PCI-E (full-size) |
| Feature 6 | Supports 1x 2.5” SATA HDD device |
| Feature 7 | Wall mount kit included |
| Feature 8 | 12V~24V DC wide-range power input |
Ordering Information
| ASB200-908 | - |
|---|

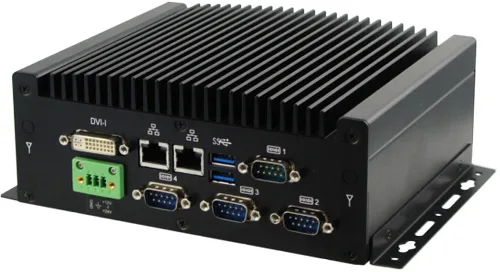

I/O — Rear panel
Front access
Where the ASB200908 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
