ASB210-953-AI

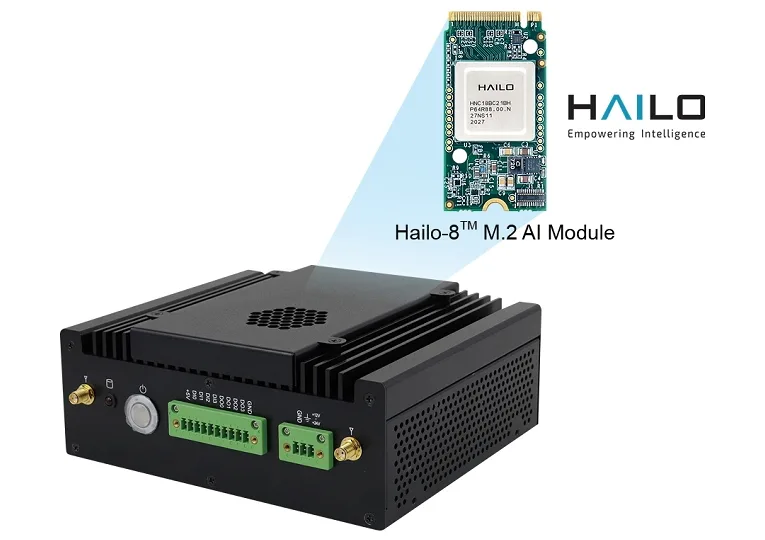

Edge AI Computer with 11th Gen Intel® Core™ U-Series & Hailo-8 M.2 AI Acceleration Module
Edge AI Computer with 11th Gen Intel® Core™ U-Series & Hailo-8 M.2 AI Acceleration Module. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | IB953AF-i7/ IB953AF-i5/ IB953EF-i3 |
|---|---|
| CPU Type | Intel® Core™ i7-1185G7E Processor Intel® Core™ i5-1145G7E Processor Intel® Core™ i3-1115G4E Processor |
| System Speed | Up to 4.4GHz |
| Memory | 2x DDR4-3200 SO-DIMM, Max. 64GB |
| AI Inference Computing Power | 26 TOPS |
| AI Accelerator | Hailo-8™ Accelerator Card module, up to 26 TOPS |
| Front Panel External I/O | 3x USB 3.1 1x USB 2.02x DisplayPort1x DB9 for COM#1 (RS232/422/485) 2x Gigabit LAN |
| Rear Panel External I/O | 1x Power button1x Digital I/O (4-in/4-out)2x Antenna holes1x HDD LED1x 3-pin DC-in terminal block for 12V (-10%) ~ 24V (+10%) |
| Expansion Slot | 2x M.2 sockets (B-Key/ E-Key)1x M.2 M-key for Hailo-8™ Accelerator Card module |
| Storage | 1x 2.5’’ HDD or SSD |
| Power Requirement | 12V~24V DC-in |
| Power Supply | 90W power adaptor |
| Construction | Aluminum & steel1x System fan |
| Chassis Color | Black |
| Mounting | Desktop or wall mount (wall mount kit included) Optional VESA mount kit |
| Weight | 1.5kg |
| Dimensions | 180mm (W) x 150mm (D) x 72mm (H) 7.08” (W) x 5.9” (D) x 2.83” (H) |
| Operating Temperature | 0°C~45°C (32°F~113°F) *with airflow 0.9m/s |
| Storage Temperature | -20°C ~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3Grms / 5~500Hz |
| Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class-B |
| Operating System | Windows 10, Linux (Ubuntu 18.04 / 20.04) |
I/O — Rear panel
Front access
Where the ASB210-953-AI is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
