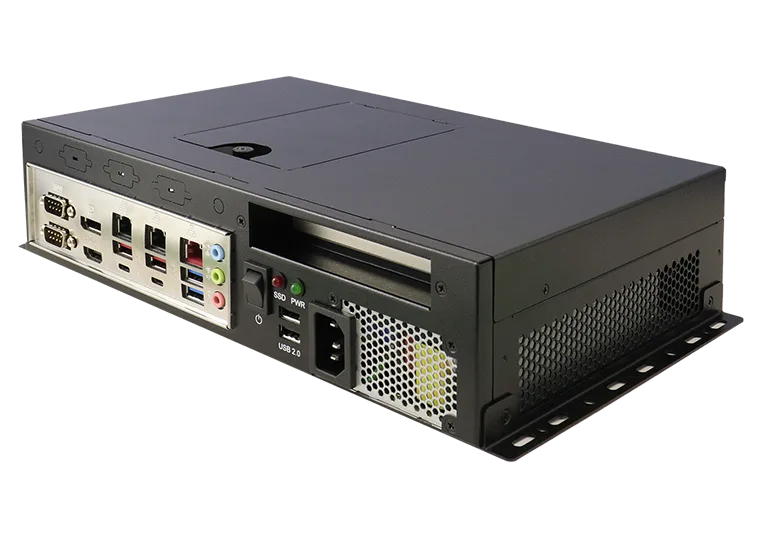

CMI211-1005
Edge AI Computer with Intel® Core™ Ultra 9/7/5 200 U/H Series
Edge AI Computer with Intel® Core™ Ultra 9/7/5 200 U/H Series. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MI1005AF |
|---|---|
| CPU Type | Intel® Core™ Ultra 200H series mobile Processors |
| System Speed | Up to 5.4 GHz (Core™ Ultra 9 285H) |
| Memory | 2x DDR5 SO-DIMM sockets, up to DDR5-6400 cSO-DIMM memory module, Max. 96GB |
| AI Inference Computing Power | 36 pTOPS |
| Front Panel External I/O | 2x USB 2.0 ports2x Antenna holes |
| Rear Panel External I/O | 1x AC-inlet1x Power switch (rocker switch)1x Power LED indicator1x Storage LED indicator2x USB2.0 ports2x DB9 for COM#1/COM#2 (COM#1 with RS232/422/485, select from BIOS)1x DP + 1 x HDMI2x (USB Type-C + USB3.2 Type-A + RJ45 connector) 1x (Dual USB3.2 Type-A + RJ45 connector)1x triple type jack for Audio connector2x Antenna holes |
| Expansion Slot | 1x PCI-E (x4)[Gen5] expansion slot1x E-Key E2230, 2x M-Key (M2280 & M2242) |
| Storage | 2x M.2 (M2280 & M2242) M-Key socket for SSD (PCI-E Gen4 signal)1x 2.5” removable device bay for SSD |
| Power Requirement | ATX power supply |
| Power Supply | Industrial 250W ATX power supplyInput voltage: 100V ~ 240VInput frequency: 47Hz ~ 63HzCompatible with IEC62368-1/EN62368-1 |
| Construction | SECC |
| Chassis Color | Black |
| Mounting | Wall mount & Desktop |
| Weight | 3.2 kg |
| Dimensions | 300mm (W) x 205mm (D) x 72mm (H)11.81” (W) x 8.07” (D) x 2.83” (H) |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5% ~ 90% @45C (non-condensing) |
| Vibration | Non-operating : 1.0 grms / 5~500Hz / randomOperating : 0.25 grms / 5~500Hz / random |
| Shock | Operating : 20G / 11msNon-operating : 40G / 11ms |
| Certification | CE / LVD / FCC Class B |
| Operating System | Windows 11 |

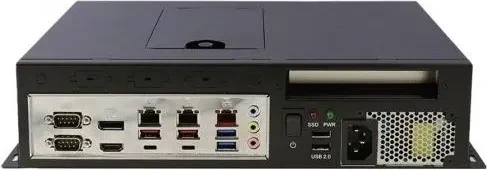

I/O — Rear panel

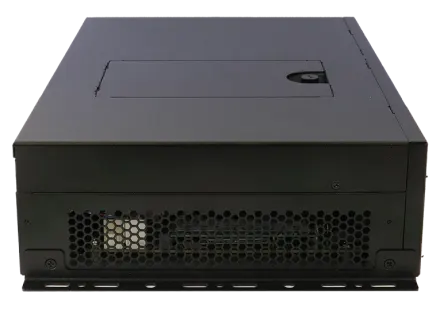

Front access
Where the CMI211-1005 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
