FANLESS COMPUTERS / IN STOCK

EC3000

Edge AI Computer with NVIDIA® Jetson Orin™ NX and Orin™ Nano Series

Edge AI Computer with NVIDIA® Jetson Orin™ NX and Orin™ Nano Series. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Orin™ NX 8GB and Orin™ Nano 8GB/4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

MEMORY

NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4 GB/sNVIDIA® Jetson Orin™ Nano 8GB: 8GB 128-bit LPDDR5 102 GB/sNVIDIA® Jetson Orin™ Nano 4GB: 4GB 64-bit LPDDR5 51 GB/s

STORAGE

1x M.2 2242 B+M Key NVMe (Default 128GB)1x M.2 2230 E Key NVMe

OPERATING TEMP.

-15°C~55°C (-5°F~131°F)

Edge AI ComputerAI Computing Platform

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # EC3000 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

23 ROWS

System Mainboard	NVIDIA® Jetson Orin™ NX 8GBNVIDIA® Jetson Orin™ Nano 8GB/4GB Module with carrier board
CPU Type	Orin™ NX 8GB and Orin™ Nano 8GB/4GB: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
System Speed	EC3000-NX8: 2.0 GHzEC3000-NANO8/ EC3000-NANO4: 1.5 GHz
Memory	NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5 102.4 GB/sNVIDIA® Jetson Orin™ Nano 8GB: 8GB 128-bit LPDDR5 102 GB/sNVIDIA® Jetson Orin™ Nano 4GB: 4GB 64-bit LPDDR5 51 GB/s
AI Inference Computing Power	NX 16GB delivery up to 100 TOPSNX 8GB delivery up to 70 TOPSNano 8GB delivery up to 40 TOPSNano 4GB delivery up to 20 TOPS

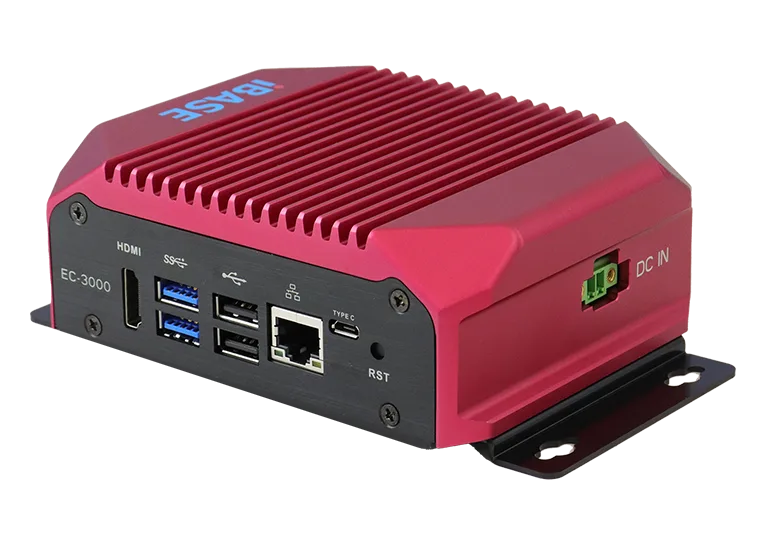

Front Panel External I/O	1x Gigabit Ethernet (10/100/1000), RJ45 with LED1x HDMI Type-A2x USB 3.2 Gen2 Type-A2x USB 2.0 Type-A1x Micro USB connector supports Recovery Mode and OTG1x Power LED1x Recovery button

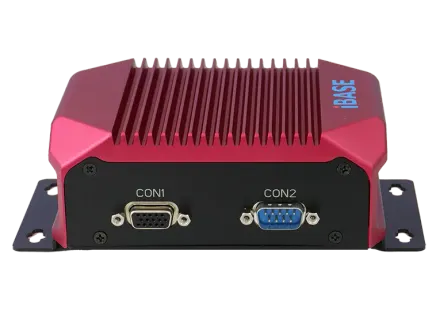

Rear Panel External I/O	1x DB9 connector for RS-232/485 and CanBus1x DB15 connector for RS-232/422/485 and DIO x82x Antenna1x 12-24V DC input with 2-pin terminal block
Expansion Slot	1x M.2 3042/3052 B-key (4G/5G/M.2 2242 B+M Key storage)1x M.2 E-key (2230) (WiFi/BT/Storage)
Storage	1x M.2 2242 B+M Key NVMe (Default 128GB)1x M.2 2230 E Key NVMe
Power Requirement	12V~24V DC
Power Supply	60W
Construction	Aluminum & steel
Chassis Color	Black & Red
Mounting	wall mount
Weight	0.8kg
Dimensions	130mm (W) x 102mm (D) x 47.5mm (H)
Operating Temperature	-15°C~55°C (-5°F~131°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Relative Humidity	5%~95% (non-condensing)
Vibration	Operatiing: 1 grms / 3~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE/FCC, Class B
Operating System	JetPack 6.1

EC3000
