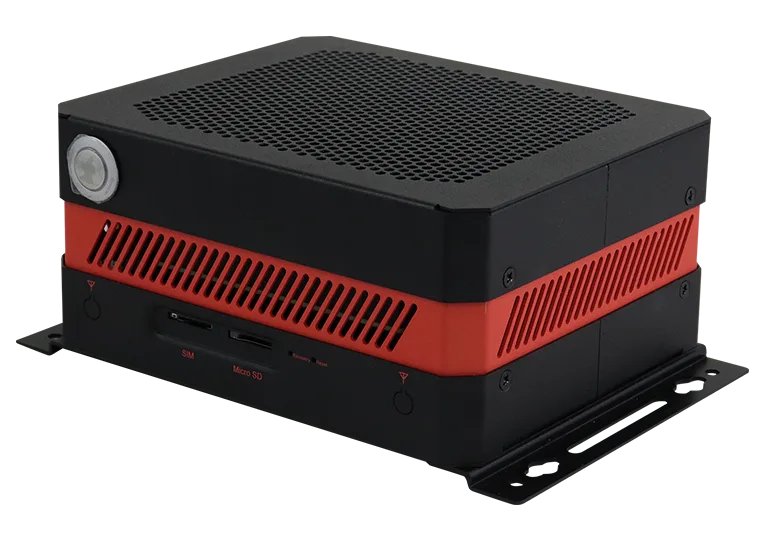

EC3500

Name: EC3500
Brand: IBASE Technology
SKU: EC3500
Availability: InStock

Edge AI Computer with NVIDIA® Jetson AGX Orin™ Series

Edge AI Computer with NVIDIA® Jetson AGX Orin™ Series. Local warranty support and engineering customization available on request.

CPU

32GB: 8-core NVIDIA® Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L364GB: 12-core NVIDIA® Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

MEMORY

32/64 GB 256-bit LPDDR5 204.8 GB/s

STORAGE

64GB eMMC 5.1

OPERATING TEMP.

0°C~50°C (32°F~122°F)

Edge AI ComputerAI Computing Platform

P/N # EC3500

23 ROWS

System Mainboard	NVIDIA® Jetson AGX Orin™ 32GB/64GB SOM module with Carrier Board
CPU Type	32GB: 8-core NVIDIA® Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L364GB: 12-core NVIDIA® Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
System Speed	2.2 GHz
Memory	32/64 GB 256-bit LPDDR5 204.8 GB/s
AI Inference Computing Power	NVIDIA Jetson AGX Orin 64GB module delivers up to 275 TOPS

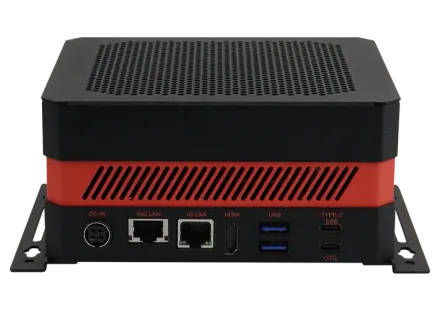

Front Panel External I/O	1x HDMI 2.12x USB 3.2 Gen1 Type-A1x USB 2.0 Type-C (OTG only)1x USB 3.2 Type-C Gen 21x DC-in 9V~36V DC / 4-pin DC jack power1x RJ45 GbE for 1G1x RJ45 GbE for 10G
Rear Panel External I/O	1x Power button1x MicroSD slot1x Micro SIM holder1x Recovery button1x Reset button2x Antenna holes
Expansion Slot	1x M.2 B-key 3042/3052 (LTE/5G - USB3) w/ Micro SIM holder: cellular function1x M.2 E-key 2230 (PCIe/USB2): WiFi/BT/GPS function1x M.2 M-key (NVMe) 2280: 1x MicroSD slot
Storage	64GB eMMC 5.1
Power Requirement	9V~36V DC
Power Supply	32GB : 52.25 W/ 64 GB: 72.25 W
Construction	SGCC
Chassis Color	Black & Red
Mounting	DIN rail, wall mount
Weight	1.35 kg
Dimensions	150mm (W) x 125mm (D) x 70mm (H)
Operating Temperature	0°C~50°C (32°F~122°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	0%~ 90% (non-condensing)
Vibration	Operatiing: 1 grms / 3~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE, FCC & LVD
Operating System	Ubuntu 22.04JetPack 6.2
