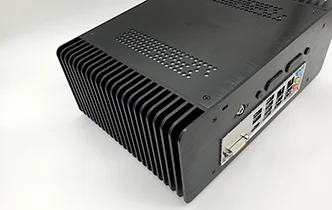

IBBOX999

SYS-IBBOX-999 - Fanless computer 10th, 12th, 14th Gen. Intel processors including I5-10500te, I5-14500te, I7-10700te or I7-14700te processor

SYS-IBBOX-999 - Fanless computer 10th, 12th, 14th Gen. Intel processors including I5-10500te, I5-14500te, I7-10700te or I7-14700te processor. Distribué au Canada et aux États-Unis par IBT Technologies, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Intel Core Processors 10th Gen Desktop i7-10700TE*

MEMORY

So-Dimm DDR4, 16GB, (Max. 128GB)

STORAGE

2x 2.5 Inch SATA)

OPERATING TEMP.

0°C ~ 60°C (32°F~140°F)

Legacy catalogueIBT Technologies

DEMANDER UNE SOUMISSION DEMANDER LA FICHE TECHNIQUE

N° DE PIÈCE FABRICANT IBBOX999 — IBT Technologies

Specifications

10 LIGNES

CPU Type	Intel Core Processors 10th Gen Desktop i7-10700TE*
System Speed	Up to 4.4 GHz (i.e. i7-10700te) Up to 16MB cache, (45.8 GB/s)
Memory	So-Dimm DDR4, 16GB, (Max. 128GB)
Storage M.2 SSD NVME PCI 4.0 128~500GB (Option	2x 2.5 Inch SATA)
Expansions	1x M.2(E-key@2230), supports CNVi, 1x M.2(M-key@2280), supports NVMe
Mounting	280x207x110 mm (11 x 8.14 x 4.33 inch) WxDxH
Dimensions	Desktop/Shelf and Bracket mount***
Operating Temperature	0°C ~ 60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Regulation	CE/ FCC ClassA/ LVD

Features

12 LIGNES

Feature 1	10th, 12th, 14th Gen. Intel processors including I5-10500te, I5-14500te, I7-10700te or I7-14700te processor
Feature 2	16M Cache, up to 4.40 GHz
Feature 3	16GB DDR4 (base)
Feature 4	Intel Processor integrated graphics UHD 630 4K or add-on
Feature 5	Video output DVI-D, HDMI, DisplayPort
Feature 6	Dual Intel Gigabit LAN
Feature 7	10x USB3, 6x USB2, 2x COM, Audio Ac97
Feature 8	Remote Management iAMT (14.0), TPM (2.0)
Feature 9	Hardware programmable Watchdog timer
Feature 10	Energy Saver (EuP/ErP)
Feature 11	CE, FCC, RoHS
Feature 12	**Proposed configuration with IBT999 SBC Any Mini-ITX, Macro-ATX or ATX certified can work.

Ordering Information

3 LIGNES

SYS-IBBOX-999-i7	Industrial high efficient fanless system with 500GB SSD, 16GB, i7-10700TE, External PSU 100W
SYS-IBBOX-999-i9	Industrial high efficient fanless system with 500GB SSD, 16GB, i7-10900TE (65w mode), External PSU 120W
SYS-IBBOX-999-i5	Industrial high efficient fanless system with 500GB SSD, 16GB, i7-10500TE, External PSU 100W
