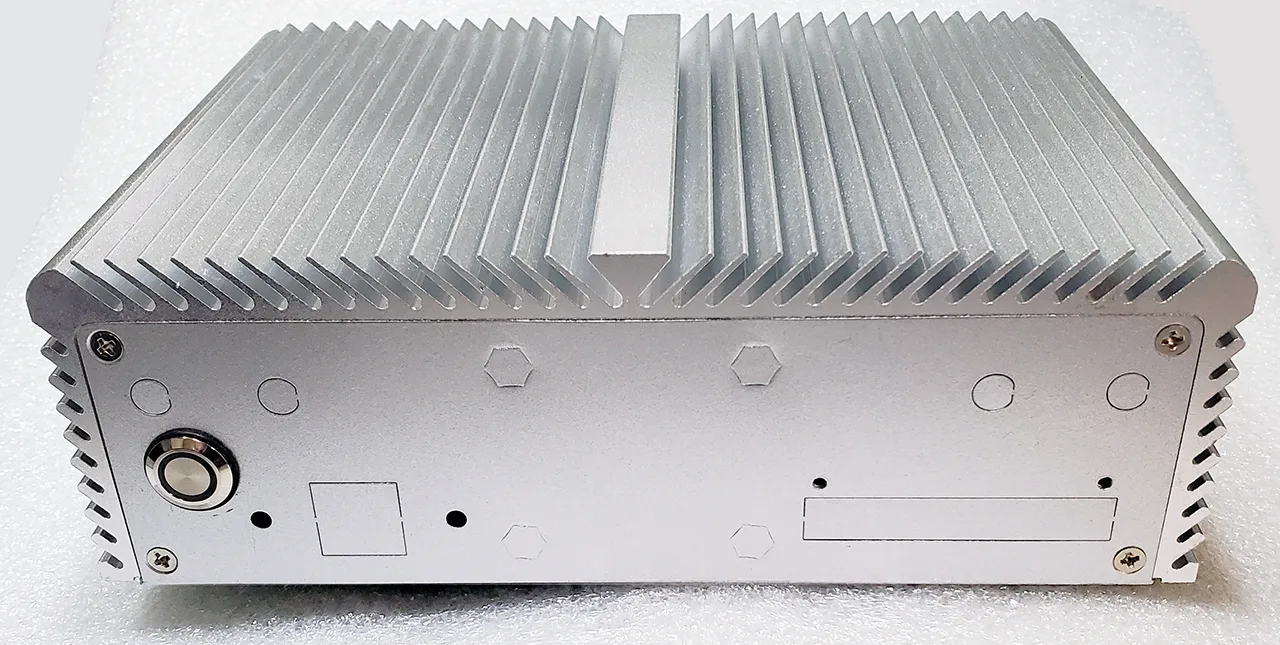

IBBOXJ6412

IB-BOX-J6412 Industrial Fanless Computer Solution With Intel Celeron Processor J6412 CPU Quad-Core, up to 2.6 GHz, TDP 10W

IB-BOX-J6412 Industrial Fanless Computer Solution With Intel Celeron Processor J6412 CPU Quad-Core, up to 2.6 GHz, TDP 10W. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

Intel Celeron J6412 CPU Quad-Core, up to 2.6 GHz, TDP 10W

MEMORY

2x 260-pin SO-DIMM DDR4 3200MT/s Max 32GB

STORAGE

1x SATA 3.0 (6.0Gb/s), 1x SATA share with M.2

DISPLAY

Intel UHD Graphics for 10th Gen Intel Processors,DX 12, OGL, OCL

Legacy catalogueIBT Technologies

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # IBBOXJ6412 — IBT Technologies

Specifications

28 ROWS

CPU	Intel Celeron J6412 CPU Quad-Core, up to 2.6 GHz, TDP 10W
System Memory	2x 260-pin SO-DIMM DDR4 3200MT/s Max 32GB
Chipset	Intel SoC Integrated
BIOS	AMI
Storage	1x SATA 3.0 (6.0Gb/s), 1x SATA share with M.2
GPU/Graphics	Intel UHD Graphics for 10th Gen Intel Processors,DX 12, OGL, OCL

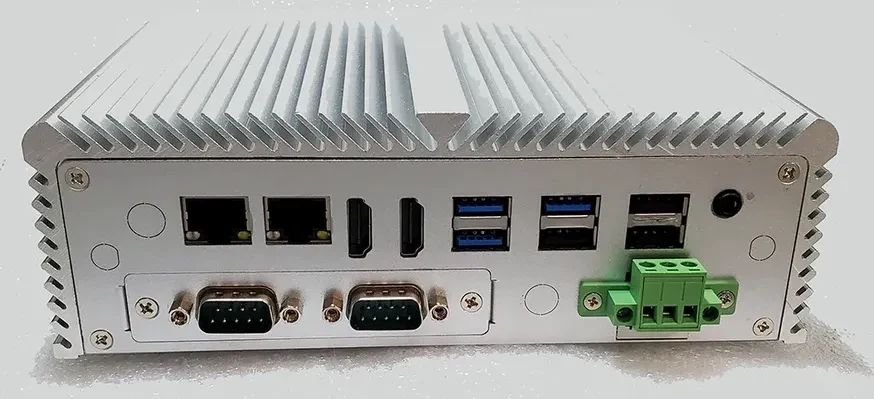

Display I/O	1 x LVDS / eDP
HDMI / DP	Up to 4096x2160@ 60Hz
LVDS / eDP	Up to 4096x2160@ 60Hz
USB	2.0/3.0/3.2 - 2x Front, 4x Back
Audio I/O	TRS 3.5 mm (Mic-IN + Audio-Out)
Network	Back 2x RJ45 for Ethernet, 6x Location for Wireless Antenna
Serial Port	Back 1x DB9, 2x Options
Parallel Port	None
GPIO	1 x 8-bit GPIO
Others	8-pin Block Connector for Multi i/o
Serial Port	3 x RS-232, 1x RS232/TTL/485
Watchdog Timer	1 - 255 steps by software program
Expansion Slot	2x M.2 (1x MPI, 1x SSD)
Power Input	1x DC 9-36V power input connector
Dimensions	182 x 130 x 59.85 mm
Weight	TBD
Operating Temperature	0C to +60C (+32F to +140F)
Storage Temperature	-20C to +70C (-4F to +158F)
Humidity	10% to 95% relative humidity, non-condensing
OS Support	UEFI OS, Windows 8/10/11, Linux
Certifications	CE / FCC
Mounting	VESA mount, DIN Rail with DIN Rail bracket (Optional) Wall Mount with Wall Mount bracket (Optional)

Features

8 ROWS

Feature 1	Features
Feature 2	Ultra Small System, Palm size Fanless Embedded System
Feature 3	Intel ElkHart Lake SoC Processors
Feature 4	DDR4-3200 MHz SO-DIMM, up to 32GB
Feature 5	Support dual hdmi display
Feature 6	Expansion with m.2 for WIFI/SSD or others
Feature 7	2 x Gigabit Ethernet, SATA 3.0
Feature 8	4 x USB 2.0, 3 x USB 3.0, 4 x COM, 2 x HDMI, 1 x GPIO, 1 x Audio

Ordering Information

5 ROWS

IB-BOX-J6412	- Small Fanless Computer with Intel 10th Gen. J6412, Dual GbE, Quad USB 3.0, 9~36VDC power input
IB-BOX-WMRAIL	- WallMount bracket
IB-BOX-DM	- Din-Rail braket
Specify	- Memory and Storage requirement
IB6412-35	3.5-inch Embedded SBC Intel Celeron J6412, up to 16GB DDR4 RAM, 2xHDMI, 1xLVDS/eDP, 2xGbit LAN, 1xSATA, 1xM.2 Key-B, 1xM.2 Key-M, 6xCOM, 10xUSB, Audio, 10%..95RH, 12V DC-in, -20..+60C operating temp.
