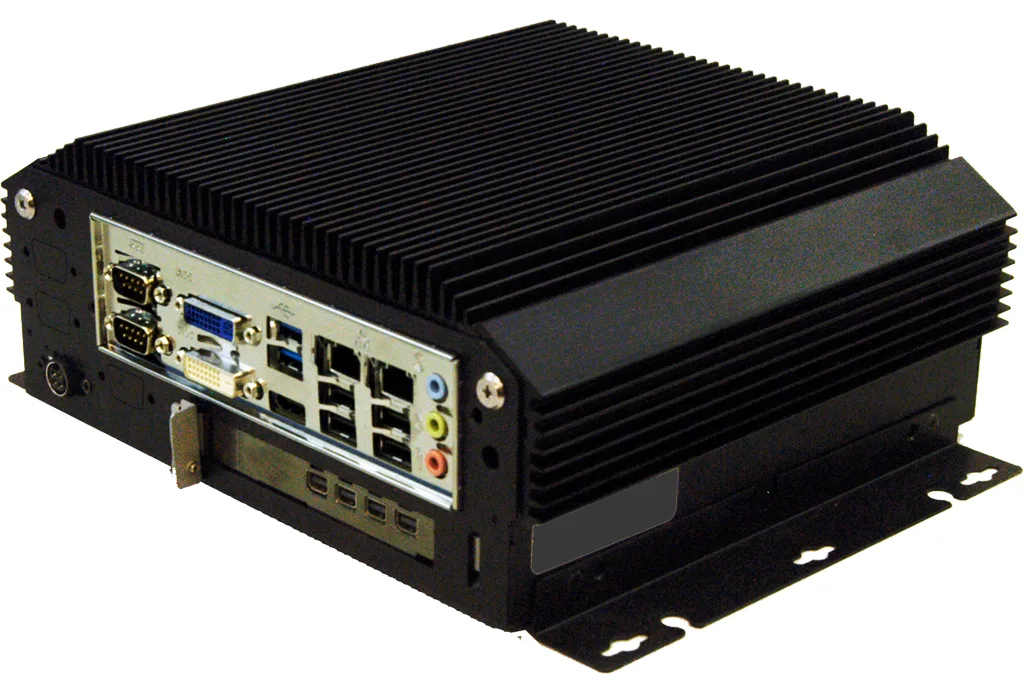

IBT568QM77
IBT568 - Fanless Intel Quad Core i7 Industrial Mini System
IBT568 - Fanless Intel Quad Core i7 Industrial Mini System. Local warranty support and engineering customization available on request.
Specifications
| CPU | Intel® Core™ i7/i5/i3/ Celeron® QC/ DC processors |
|---|---|
| Memory | DDR3 2GB SODIMM; Option: 4GB, 8GB or More… |
| Storage | 2.5 Inch 500 GB HDD Industrial grade |
| USB Port | 10x USB 2.0/3.0 (4 on header)(6 on connectors) |
| Display Port | Processor graphics (Gen 5.75 graphics engine) Supports CRT, DVI-I, DVI-D, LVDS and DisplayPort Supports 24-bit dual channel LVDS display |
| Audio Port | PCH built-in high definition audio controller with Realtek ALC892 for 7.1 CH audio |
Features
| Feature 1 | Intel® Express Chipset |
|---|---|
| Feature 2 | Supports Intel 2nd, 3td, 4th,6th, 10th Gen., Intel Core™ i3, i5, i7 and Pentium CPU mobile. |
| Feature 3 | 2 * Dual Channel DDR3 up to 16GB |
| Feature 4 | Realtek RT8111EVL Gigabit LAN |
| Feature 5 | PCI Express x16 Slot |
| Feature 6 | 4-port SATAII 3Gb/s |
| Feature 7 | DVI-D, and VGA Video Outputs |
| Feature 8 | Built-in Watchdog Timer Technology |
I/O — Rear panel
Front access
Where the IBT568QM77 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓Introduction to Watchdog TimerPDF document
Licensed customers get access to BIOS source, schematics, and full production test documentation.
