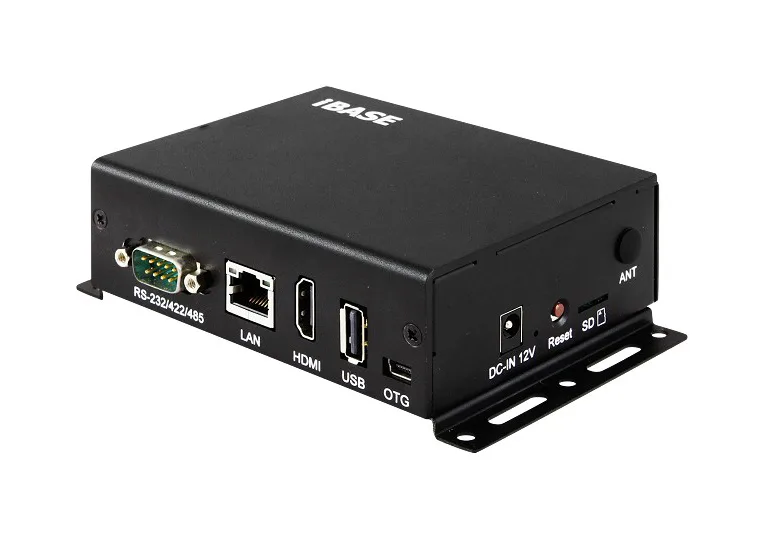

ISR101
Ruggedized Edge Computer with NXP ARM® Cortex-A9 i.MX 6Dual-Lite 1GHz Processor
Ruggedized Edge Computer with NXP ARM® Cortex-A9 i.MX 6Dual-Lite 1GHz Processor. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | IBR115 2.5-inch SBC |
|---|---|
| Processor | NXP Cortex™-A9 i.MX 6Dual-Lite, 1GHz |
| System Memory | 1GB DDR3 on board |
| LAN Connector | 1x RJ45 GbE LAN |
| Display | 1x HDMI 1.4 (FHD) |
| Front I/O | 1x HDMI Type-A, up to FHD1x USB 2.0 Type-A1x RJ45 GbE LAN1x RS232/422/485 (DB9 connector)1x Mini-USB OTG |
| Rear I/O | 1x USB 2.0 Type-A8x GPIO |
| Side I/O | 1x Reset button1x 12V DC-in Jack1x Micro SD socket (UHS-I SDR-104, 104MB/s max.)1x Antenna hole (RP SMA Jack) |
| Expansion Slots | 1x M.2 Key-E (2230) w/ USB, SDIO, UART, PCI-E |
| Storage | 4GB eMMC on board (optional 8/16/32/64 GB) |
| Watchdog | 256 Levels, 0~128 secs |
| Fanless | Yes |
| Construction | SGCC |
| Chassis Color | Black |
| Mounting | VESA 75 / DIN rail / wall mount |
| Dimensions (WxDxH ) | 122mm x 102mm x 36 mm (4.81" x 4.02" x 1.42") |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| OS Support | Yocto v2.1Android 6.0.1 |
| Certification | CE/ FCC Class B |
I/O — Rear panel
Front access
Where the ISR101 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓Introduction to Watchdog TimerPDF document
Licensed customers get access to BIOS source, schematics, and full production test documentation.
