MPT-3000R

Name: MPT-3000R
Brand: IBASE Technology
SKU: MPT-3000R
Availability: InStock

EN50155/EN45545 Certified Railway Computer System with Intel® Atom® Processor E3845, M12 Connection and WWAN Redundancy

EN50155/EN45545 Certified Railway Computer System with Intel® Atom® Processor E3845, M12 Connection and WWAN Redundancy. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® Processor E3845

MEMORY

2x 2GB DDR3L-1333 SO-DIMM (Dual Channel)

STORAGE

2.5” device bay for SSD & HDD

OPERATING TEMP.

SSD: -40°C ~ 70°C (-40°F~158°F)HDD: -20°C ~ 50°C (-4°F~122°F)

MPT R Series EN50155…Railway Computer System

REQUEST QUOTE REQUEST DATASHEET

P/N # MPT-3000R

Specifications

19 ROWS

System Mainboard	MBT-3001R
CPU Type	Intel® Atom® Processor E3845
Processor Speed	1.91GHz
Memory	2x 2GB DDR3L-1333 SO-DIMM (Dual Channel)

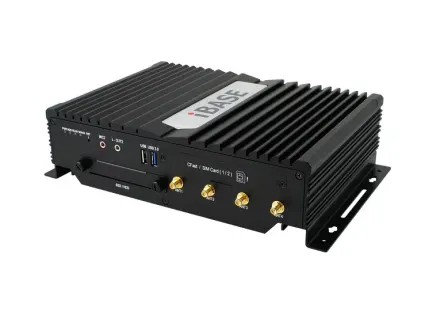

Front panel I/O	CFast, 2.5” device bay, 2nd Mic-In & Line-Out 2x SIM sockets, 1x USB 3.0, 1x USB 2.0, Reset button Status LEDs, 4x antenna connectors

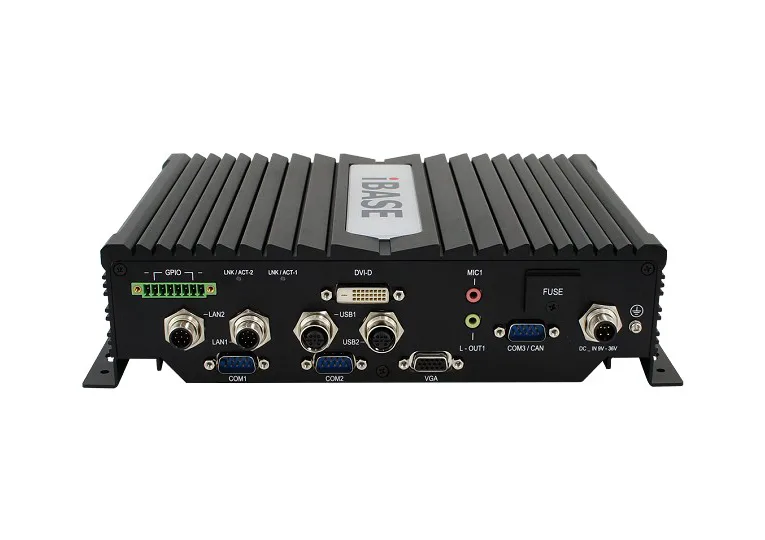

Rear Panel External I/O	DVI-D, VGA, 3x COMs (one with RS422/485 options) 2x M12 GbE, 2x M12 USB 2.0, M12 power connection 1st Mic-In & Line-Out, GPIO, GbE status LEDs
Storage	2.5” device bay for SSD & HDD
Expansion slots	1x Half-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E)1x 2230 M.2 E-Key socket (USB 2.0 + PCI-E)1x 3042 M.2 B-Key WWAN socket (USB 2.0)1x 2280 M.2 M-Key SSD socket (SATA)
Power Supply	DC 9V~36V / 72V / 110V
Construction	Aluminum
Chassis Color	Black
Mounting	Custom mounting rail
Dimensions	256.0 (W) x 182.0 (D) x 68.0 (H) mm10.08” (W) x 7.17” (D) x 2.68” (H)
Operating Temperature	SSD: -40°C ~ 70°C (-40°F~158°F)HDD: -20°C ~ 50°C (-4°F~122°F)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	10 ~ 95% RH @ 45°C (non-condensing)
Vibration	Function: 1 m/s2, 5Hz~150 Hz (EN 61373)Lifetime: 5.72 m/s2, 5Hz~150 Hz (EN 61373)
Shock	50 m/s2, 30 msec (EN 6 1373)
Certified	EN50155:2021, EN50153:2014EN50121-3-2:2015, CE Class-A, FCC Class-A, EN45545
