MPT-3000RP

Name: MPT-3000RP
Brand: IBASE Technology
SKU: MPT-3000RP
Availability: InStock

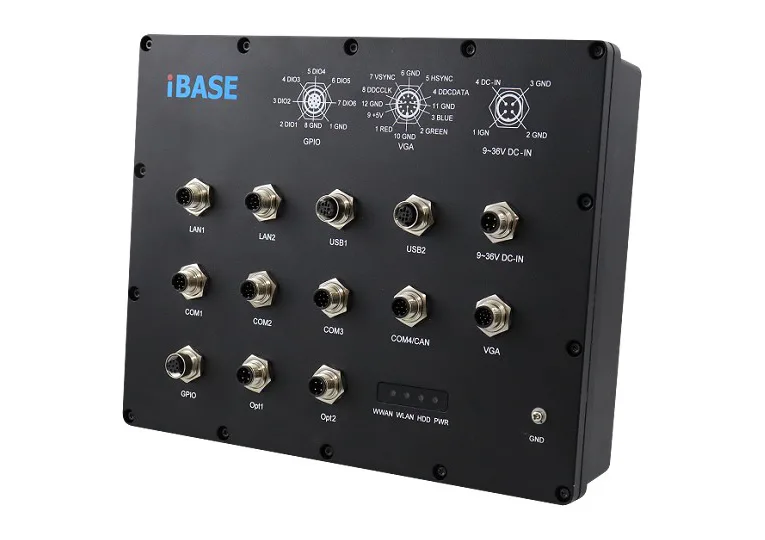

EN50155/EN45545 Certified Railway Computer with Intel® Atom® Processor E3845 Outdoor IP67 Waterproof, M12 Connection and WWAN Redundancy

EN50155/EN45545 Certified Railway Computer with Intel® Atom® Processor E3845 Outdoor IP67 Waterproof, M12 Connection and WWAN Redundancy. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® Processor E3845

MEMORY

2x 2GB DDR3L-1333 SO-DIMM (Dual Channel)

STORAGE

2.5" drive bay for SSD & HDD M.2 SSD Storage

OPERATING TEMP.

SSD: -40°C ~ 70°C (-40°F~158°F)

MPT R Series EN50155…Railway Computer System

REQUEST QUOTE REQUEST DATASHEET

P/N # MPT-3000RP

Specifications

19 ROWS

System Mainboard	MBT-3001R
CPU Type	Intel® Atom® Processor E3845
Processor Speed	1.91GHz
Memory	2x 2GB DDR3L-1333 SO-DIMM (Dual Channel)
Front panel I/O	CFast, 2.5" drive bay,2x SIM sockets2x M12 USB 2.04x antenna connectors1x M12 VGA, 3x M12 COMs, 2x M12 GbE, 1x M12 power connection1x M12 GPIO, 1x M12 CAN Bus Status LEDs
Rear Panel External I/O	N/A
Storage	2.5" drive bay for SSD & HDD M.2 SSD Storage
Expansion slots	1x Half-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E)1x 2230 M.2 E-Key socket (USB 2.0 + PCI-E)1x 3042 M.2 B-Key WWAN socket (USB 2.0)1x 2280 M.2 M-Key SSD socket (SATA)
Power Supply	DC 9V~36V / 72V / 110V
Construction	Aluminum
Chassis Color	Black
Mounting	Wall Mount
Dimensions	270.0 (W) x 63.0 (D) x 210.0 (H) mm10.62” (W) x 2.48” (D) x 8.26” (H)
Operating Temperature	SSD: -40°C ~ 70°C (-40°F~158°F)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	10 ~ 95% RH @ 45°C (non-condensing)
Vibration	Function: 1 m/s2, 5Hz ~ 150 Hz (EN 61373)Lifetime: 5.72 m/s2, 5Hz ~ 150 Hz (EN 61373)
Shock	50 m/s2, 30 msec (EN 61373)
Certified	EN50155: 2007, EN50153:2014EN50121-3-2:2015, CE Class-A, FCC Class-A, EN45545
