MPT-3100V

Name: MPT-3100V
Brand: IBASE Technology
SKU: MPT-3100V
Availability: InStock

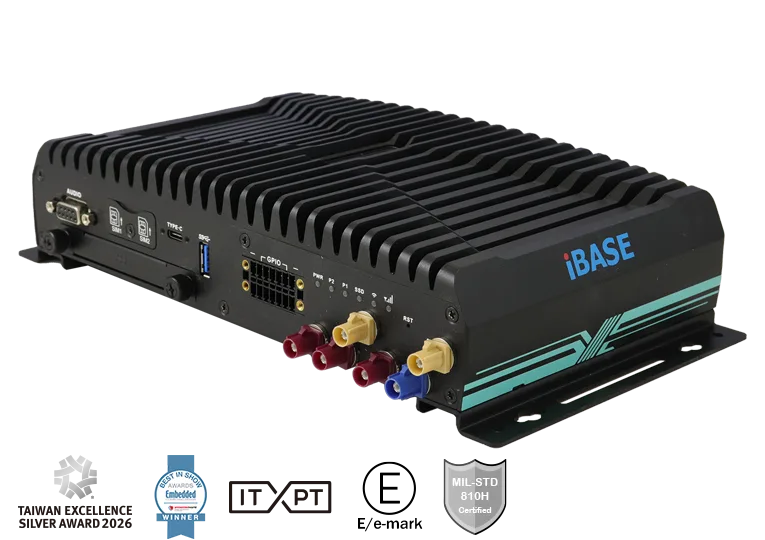

ITxPT & E-Mark Certified In-Vehicle Edge AI Computer with Intel® Atom® x7000RE Series Processor, WWAN Redundancy

ITxPT & E-Mark Certified In-Vehicle Edge AI Computer with Intel® Atom® x7000RE Series Processor, WWAN Redundancy. Local warranty support and engineering customization available on request.

CPU

Intel® Atom® x7433RE Processor

MEMORY

1x DDR5-4800 SO-DIMM socketUp to 16GB

STORAGE

1x M.2 2280 M-Key socket for SSD (SATA III signal)1x 2,5" removable device bay for SSD

OPERATING TEMP.

-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD)-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)

MPT V Series E mark…In Vehicle Computer System

REQUEST QUOTE REQUEST DATASHEET

P/N # MPT-3100V

Specifications

19 ROWS

System Mainboard	MBT-3101V
CPU Type	Intel® Atom® x7433RE Processor
Processor Speed	Up to 2.7GHz
Memory	1x DDR5-4800 SO-DIMM socketUp to 16GB

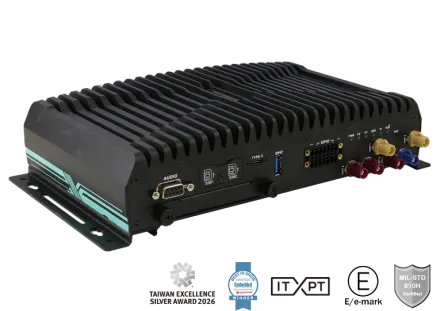

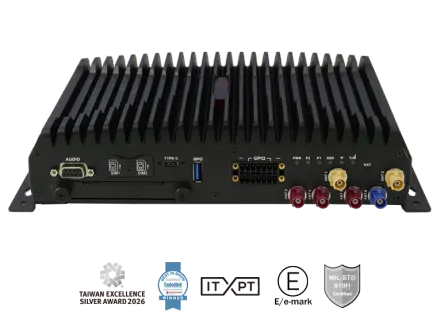

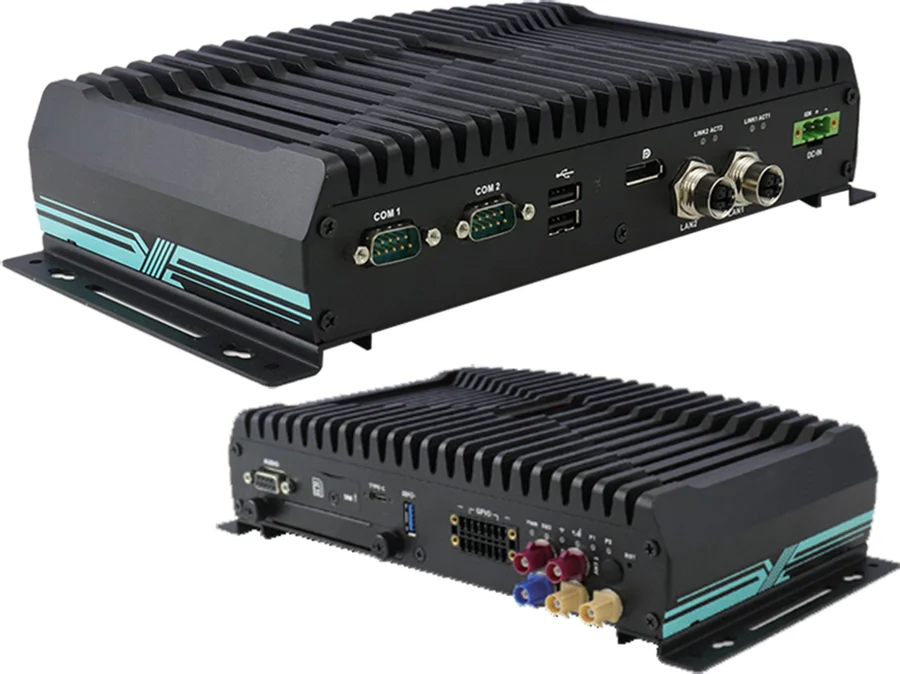

Front panel I/O	1x USB 3.2 Gen2 stack Type-A connector2x external accessible SIM socket1x USB Type-C connector with screw-lock1x Removable 2.5" SSD device bay1x DB9 female connector for Line-out & MIC-in1x reset button1x 14-pin terminal block 6-in & 6-out digital I/O with 24V input and output6x FAKRA antenna holes4x light-pipe for status LED Indicators

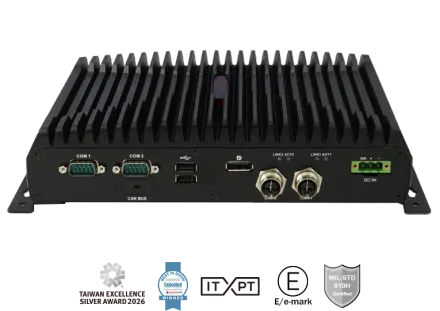

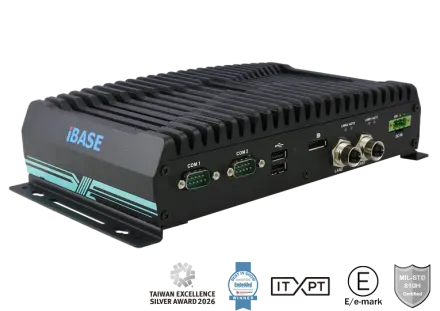

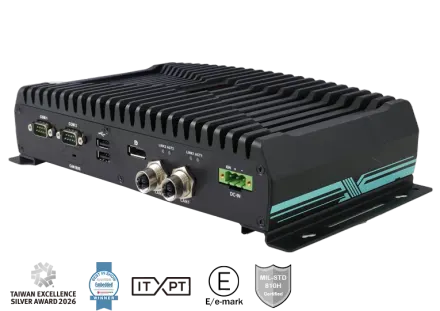

Rear Panel External I/O	2x M12 X-code 8P female for GbE LAN1/LAN21x terminal block 3-pin for DC-input1x VGA connector for graphic output (optional)1x DisplayPort output1x DB9F connector for 2x CAN FD bus connection (works with extra CAN module)2x DB9M for COM#1 / COM#22x USB 2.0 Type-A connector2x light-pipe for LAN status LED Indicators
Storage	1x M.2 2280 M-Key socket for SSD (SATA III signal)1x 2,5" removable device bay for SSD
Expansion slots	1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB 2.0 + SMBus)1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (USB3 .2 Gen.1 + SMBus)1x M.2 2280 M-Key socket for SSD device (SATA III)1x Mini PCI-E full-sized socket for MVB/CAN FD module (PCI-E + USB 2.0 + SMBus)1x Mini-PCIe half-size socket for GPS module (USB2.0 only)
Power Supply	DC-input 9V ~ 36V (Nominal DC-input 12V/24V)
Construction	Aluminum
Chassis Color	Black
Mounting	wall mount
Dimensions	250 (W) x 150 (D) x 55 (H) mm9.84” (W) x 5.9” (D) x 2.16” (H)
Operating Temperature	-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD)-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	10 ~ 95% RH @45°C (non-condensing)
Vibration	Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only)
Shock	Operating: Sawtooth: 20G, 11msec (Z-axis) /MIL-STD-810GNon-operating: Sawtooth: 40G, 11 msec (Z-axis) /MIL-STD- 810G
Certified	E-Mark-24CE (EN 62368-1 / EN55032 / EN55035), FCC Class-A
