MPT-500R

EN50155/EN45545 Certified Intel® Atom® x6000RE Processor Railway Computer System with M12 Connection and Dual WWAN

EN50155/EN45545 Certified Intel® Atom® x6000RE Processor Railway Computer System with M12 Connection and Dual WWAN. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Atom® x6212RE/ x6425RE Processor

MEMORY

4GB/8GB LPDDR4 3200 on board

STORAGE

1x 2280 M.2 M-key (PCI-E M.2 SSD)1x 2.5" device bay for SSD or HDD. Default 2.5" 64G SSD

OPERATING TEMP.

SSD w/o PCI-E Card: -40°C ~70°C, up to 85°C for 10 minutesSSD w/ PCI-E Card: -40°C ~55°C, up to 70°C for 10 minutesHDD: -25°C ~55°C, up to 70°C for 10 minutes

MPT R Series EN50155…Railway Computer System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # MPT-500R — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	MBT-501R
CPU Type	Intel® Atom® x6212RE/ x6425RE Processor
Processor Speed	Intel® Atom® x6212RE: 1.2GHzIntel® Atom® x6425RE: 1.90GHz
Memory	4GB/8GB LPDDR4 3200 on board

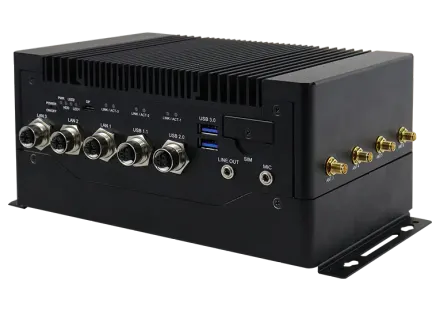

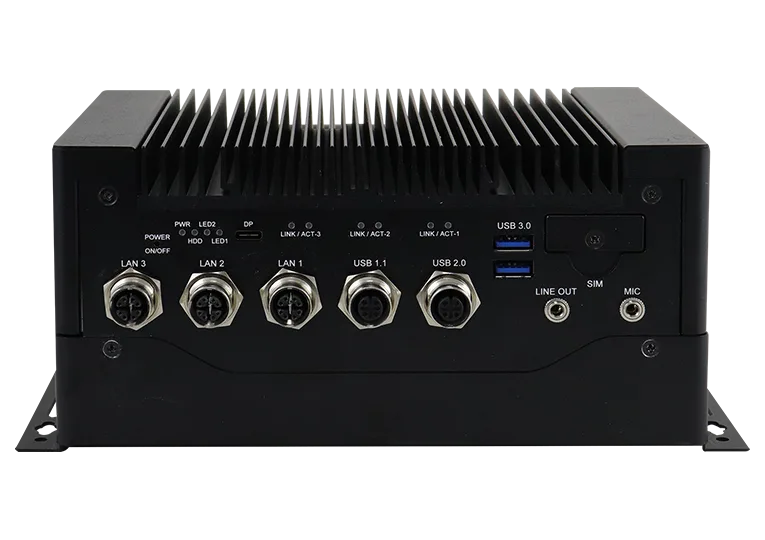

Front panel I/O	1x Recessed access tact-switch for system power4x light-pipe for four status LED1x USB type-C with DP6x LED with each port for network status2x USB3.2 Gen.1 type-A2x external accessible SIM socket3x M12 8-pin X-code for LAN (Two GbE LAN come with PoEand one 2.5G LAN)1x M12 4-pin A-code for USB 1.11x M12 4-pin A-code for USB 2.01x 3.5mm audio connector for line output1x 3.5mm audio connector for MIC input

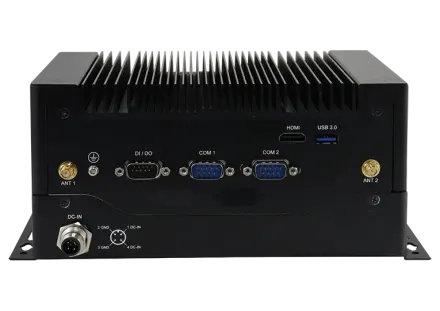

Rear Panel External I/O	1x HDMI type-A1x USB3.2 Gen.2 type-A2x SMA antenna holes with cap1x M3 screw hole for grounding connection1x DSUB15 for 4x DO/4x DI and ground1x DSUB9 for RS-232/4851x DSUB9 for 2x RS485 isolated1x M12 4-pin A-code for power input
Storage	1x 2280 M.2 M-key (PCI-E M.2 SSD)1x 2.5" device bay for SSD or HDD. Default 2.5" 64G SSD
Expansion slots	1x mPCI-E full/half socket (PCI-E, USB 2.0) (Supports SIM2)1x 3042/52 M.2 B-key (4G/5G) (Supports SIM1)
Power Supply	24V DC or 72V DC/110V DC
Construction	Aluminum
Chassis Color	Black
Mounting	Side mounting
Dimensions	240 (W) x 138 (D) x 93 (H) mm9.4” (W) x 5.4” (D) x 3.7” (H)
Operating Temperature	SSD w/o PCI-E Card: -40°C ~70°C, up to 85°C for 10 minutesSSD w/ PCI-E Card: -40°C ~55°C, up to 70°C for 10 minutesHDD: -25°C ~55°C, up to 70°C for 10 minutes
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	10 ~ 95% @ 45°C, (non-condensing)
Vibration	Function: 1m/S2, 5Hz~150Hz (EN 61373)Lifetime: 7.9m/S2, 5Hz~150Hz (EN 61373)
Shock	50 m/S2, 30 msec (EN61373)
Certified	EN50155: 2021CE (EN62368/ EN55032/ EN55035)/ FCC Class-AEN45545-2
