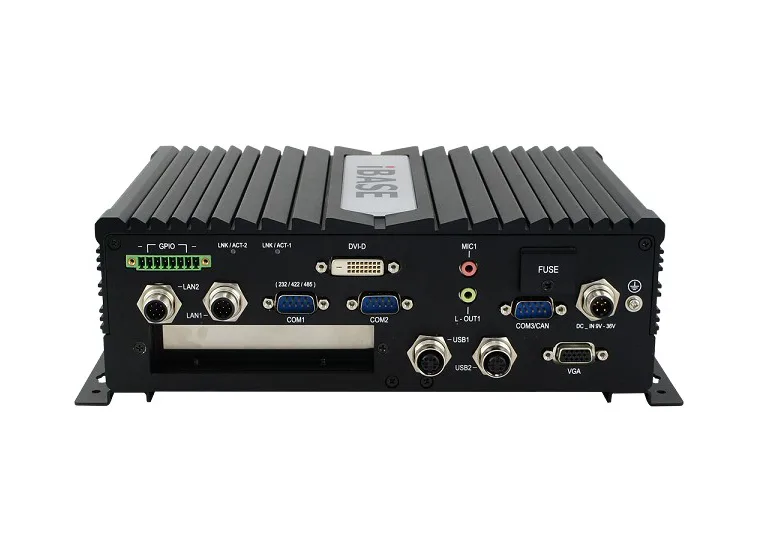

MPT-7000R
EN50155/EN45545 Certified Railway Computer System with 7th/6th Gen Intel® Core™ Processor, M12 Connection and WWAN Redundancy
EN50155/EN45545 Certified Railway Computer System with 7th/6th Gen Intel® Core™ Processor, M12 Connection and WWAN Redundancy. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | MBT-7001R |
|---|---|
| CPU Type | 7th/6th Generation Intel® Core Processor |
| Processor Speed | 2.6GHz |
| Memory | 2x 4GB DDR4-2133 SO-DIMM (Dual Channel) |
| Front panel I/O | CFast, 2.5” device bay, 2nd Mic-In & Line-Out 2x SIM sockets, 2x USB 3.0, Reset button Status LEDs, 4x antenna connectors |
| Rear Panel External I/O | DVI-D, VGA, 3x COMs (2x COMs for HV model, one with RS422/485 options), 2x M12 GbE, 2x M12 USB 2.0, M12 power connection, 1st Mic-In & Line-Out, GPIO, GbE status LEDs, 1x PCI-E (x4) slot |
| Storage | 2x 2.5” device bay for SSD & HDD |
| Expansion slots | 1x Half-size Mini PCI-E socket (USB 2.0)1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E)1x 2230 M.2 E-Key socket (USB 2.0 + PCI-E)1x 3042 M.2 B-Key WWAN socket (USB 2.0)1x 2280 M.2 M-Key SSD socket (SATA) |
| Power Supply | DC 9V~36V / 72V / 110V |
| Construction | Aluminum |
| Chassis Color | Black |
| Mounting | Custom mounting rail |
| Dimensions | 256.0 (W) x 182.0 (D) x 83.0 (H) mm10.08” (W) x 7.17” (D) x 3.27” (H) |
| Operating Temperature | SSD: -30°C ~ 55°C (-22°F~131°F)HDD: -20°C ~ 45°C (-4°F~113°F)SSD: -40°C ~ 70°C (-40F ~ 158F) system only |
| Storage Temperature | -35°C ~ 85°C (-31°F~185°F) |
| Relative Humidity | 10 ~ 95% RH @45°C (non-condensing) |
| Vibration | Function: 1 m/s2, 5Hz~150 Hz (EN 61373)Lifetime: 5.72 m/s2, 5Hz~150 Hz (EN 61373) |
| Shock | 50 m/s2, 30 msec (EN 61373) |
| Certified | EN50155:2021, EN50153:2014EN50121-3-2:2015, CE Class-A, FCC Class-A, EN45545 |

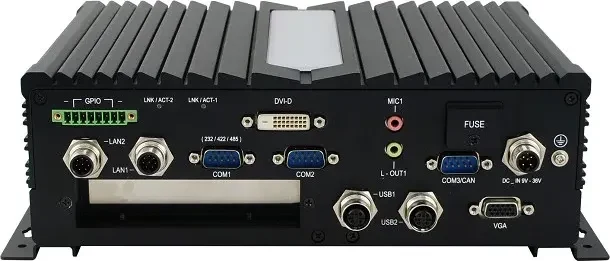

I/O — Rear panel
Front access
Where the MPT-7000R is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
