MPT-7100V

Name: MPT-7100V
Brand: IBASE Technology
SKU: MPT-7100V
Availability: InStock

E-Mark Certified In-Vehicle Computer System with 13th Gen Intel® Core™ Processor, WWAN Redundancy

E-Mark Certified In-Vehicle Computer System with 13th Gen Intel® Core™ Processor, WWAN Redundancy. Local warranty support and engineering customization available on request.

CPU

13th Gen Intel® Core U-Series Processor

MEMORY

2x 8GB DDR5-4800 SO-DIMM (Dual Channel)

STORAGE

1x M.2 2280 M-Key socket for NVMe SSD (PCI-E x4 [Gen.4])2 x 2.5“ removable device bay for SSD

OPERATING TEMP.

-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD)-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)

MPT V Series E mark…In Vehicle Computer System

REQUEST QUOTE REQUEST DATASHEET

P/N # MPT-7100V

Specifications

19 ROWS

System Mainboard	MBT-7101V
CPU Type	13th Gen Intel® Core U-Series Processor
Processor Speed	Up to 3.0GHz
Memory	2x 8GB DDR5-4800 SO-DIMM (Dual Channel)

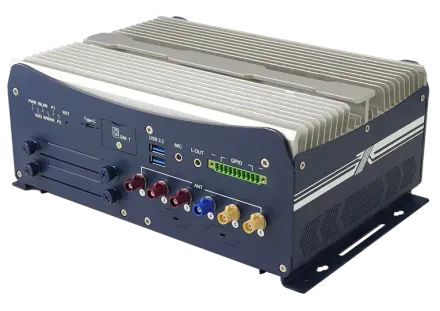

Front panel I/O	2x USB3.2 Gen2 stack Type-A connector2x External accessible SIM socket1x USB Type-C connector with screw-lock2x Removable 2.5“ SSD device bay1x 3.5mm green color audio for Line-out1x 3.5mm pink color audio for MIC-in1x Reset button1x 10-pin terminal block for isolated digital I/O6x FAKRA antenna holes (optional SMA type)6x Light-pipe for status LED indicators (2x programmable)

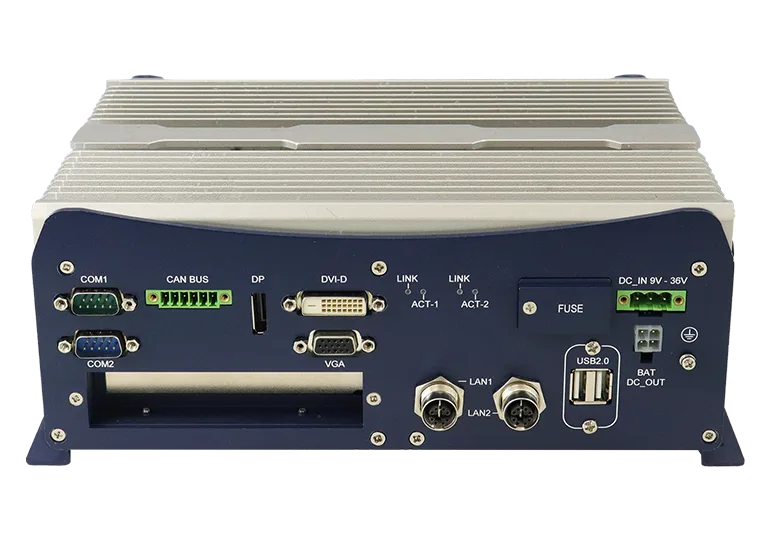

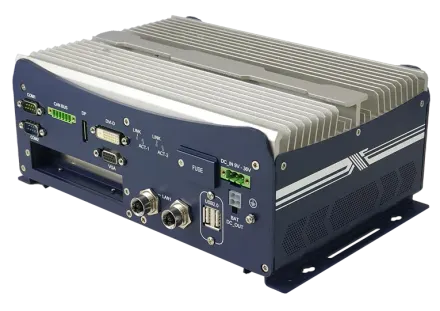

Rear Panel External I/O	2x M12 X-code 8P female for 2.5 GbE LAN1/LAN22x USB 2.0 Type-A connector1x 3-pin terminal block for DC-input1x DisplayPort output1x DVI-D connector, 1 x VGA connector1x 6-pin terminal block for 2x CAN bus master2x DB9M for COM#1 (RS232/422/485) / COM#2 (RS232 only)1x Removable blade fuse holder4x Light-pipe for LAN status LED indicators1x PCI-E (x4) slot1x M3 with washer screw hole for grounding connection
Storage	1x M.2 2280 M-Key socket for NVMe SSD (PCI-E x4 [Gen.4])2 x 2.5“ removable device bay for SSD
Expansion slots	1x M.2 2230 E-Key socket for WLAN & BT connection (PCI-E + USB2.0 + SMBus).1x M.2 3042/52 B-Key socket for WWAN (4G/5G) connection (PCI-E + USB3.2 + SMBus).1x M.2 2280 M-Key socket for NVMe SSD / Hailo AI module (PCI-E x4 [Gen.4])1x Mini PCI-E full-size socket for MVB/CAN FD module (PCI-E + USB2.0 + SMBus)1x Mini PCI-E half-size socket (USB 2.0)
Power Supply	DC-input 9V ~ 36V
Construction	Aluminum
Chassis Color	Black
Mounting	Wall mount
Dimensions	256.0 (W) x 182.0 (D) x 97.3 (H) mm10.08” (W) x 7.17” (D) x 3.83” (H)
Operating Temperature	-40°C ~70°C (-40°F~158°F) (w/o FAN & SSD)-20°C ~55°C (-4°F~131°F) (w/ PCI-E card)
Storage Temperature	-40°C ~ 85°C (-40°F~185°F)
Relative Humidity	10 ~ 95% RH @45°C (non-condensing)
Vibration	Operating/Non-operating (SSD): 2,26 Grms (5~500 Hz) / MIL-STD-810G, composite wheeled condition (Z-axis only)
Shock	Operating: Sawtooth: 20G, 11msec (Z-axis) /MIL-STD810G, Non-operating: Sawtooth: 40G, 11 msec (Z-axis) / MIL-STD-810G
Certified	E-Mark-24CE (EN 62368-1/EN55032/EN55035), FCC Class-B
