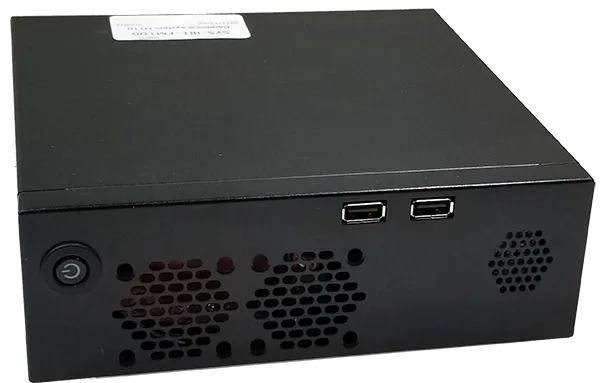

SYSIBTFM106
Mini-System ITX (steel case) /w Mini-ITX for Intel 6th / 7th Gen. i-core, H110 chipsets
Mini-System ITX (steel case) /w Mini-ITX for Intel 6th / 7th Gen. i-core, H110 chipsets. Local warranty support and engineering customization available on request.
Specifications
| Processor | Support Intel® Core™ i7/i5/i3 processor series in an LGA1155 socket with up to 65W TDP |
|---|---|
| Chipsets | Intel H110 |
| System Memory | Up to 32 GB |
| Memory Type | DDR4 @ 1.2V, 2133MHz |
| Memory Socket | 204-pin So-DIMM socket x2 (Dual Channel) |
| Video | Display Port, HDMI, LVDS (Multi-Channel) |
| Network | Dual GbE Ethernet Intel i219 |
| Power supply | External power supply 90 watts , AC input 90-240V full range |
| I/O expansion | Mini-PCIe - 2 x mini-PCIe(Full-/Half & Half)• PCIe - 1 x PCIe 3.0 x 4 slot, 3x SATA 6GB |
| Front panel | ower switch with LED, 2x USB 2.0 ports, |
| Back panel | USB3.0, USB2.0, DP out x1, HD out x1, Mic-in ,Line out, Dual Ethernet |
| Case size | 190 mm(W) x 190mm (L) x 62mm (H) metal case |
| Operating Temp. | 0-60℃/ RH 20～90% (no condensation) |
| Storage Temp. | -20-60℃/ RH 20～90% (no condensation · Processors support LGA1155 up to 65w |
| Certifications | CE/FCC certifications |
Features
| Feature 1 | - Intel® 6th / 7th Gen Core i3/i5/i7 processor LGA1155 socket with up to 65W TDP |
|---|---|
| Feature 2 | - Display support DP, HDMI, LAN |
| Feature 3 | - DC-in Jack Default: 19V in (5.1mm / ID , 7.4mm / OD) |
| Feature 4 | - Kingston Lock hole designed for security |
Ordering Information
| SYS-IBT-FM106-i7 | Mini-iTx system with Intel i7-7700 H110 motherboard and PSU barebone |
|---|---|
| SYS-IBT-FM106 | Mini-iTx system with Intel H110 motherboard and PSU barebone |
| CS-IBT-FM106 | Case system with external PSU barebone for Mini-iTx |
I/O — Rear panel
Front access
Where the SYSIBTFM106 is deployed
PLC supervision, machine data collection, and OPC UA gateways in harsh production environments.
On-premise inference for vision, quality inspection, and predictive maintenance workloads.
Unattended operation across wide ambient temperature swings with no fan to fail.
Substations, pump stations, and telecom remote sites needing silent, low-maintenance compute.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
