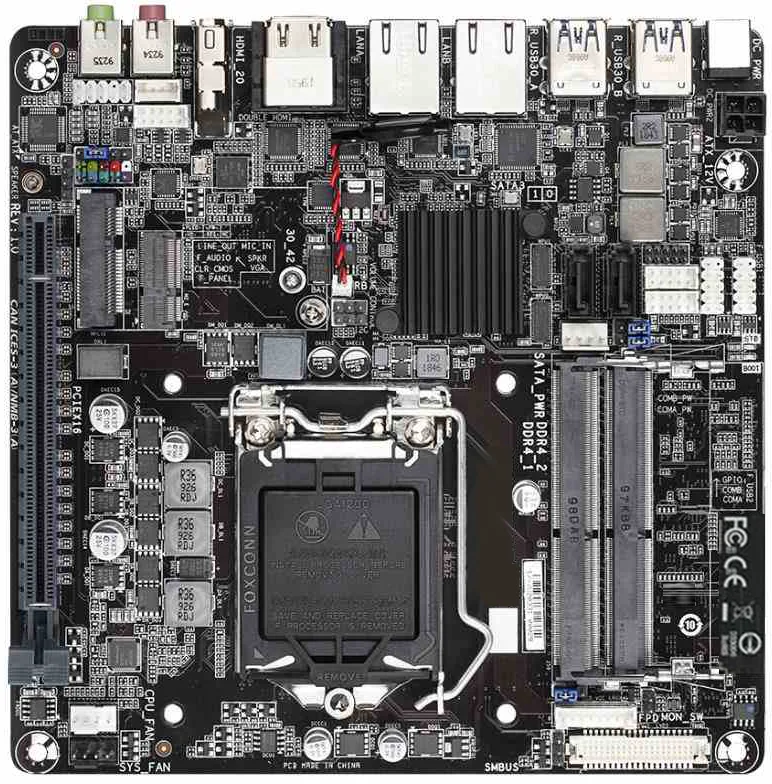

IMH410G

10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® W480E/Q470E/H420E PCH Mini-ITX Motherboard

10th Gen Intel® Xeon® W / Core™ / Pentium® / Celeron® with Intel® W480E/Q470E/H420E PCH Mini-ITX Motherboard. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

LGA1200

MEMORY

2x DDR4 SO-DIMM, Max. 64GB Total · (support DDR4 2666/2933)

STORAGE

1x M.2 (M2280) NVMe

DISPLAY

Integrated Graphics Processor-Intel® HD Graphics

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # IMH410G — IBASE Technology

Specifications

21 ROWS

CPU Socket	LGA1200
CPU	10th Gen Intel® Xeon® E / Core™ / Pentium® / · Celeron® processors, up to 4.7GHz
PCH	Intel® H410 Express Chipset
Memory Types	2x DDR4 SO-DIMM, Max. 64GB Total · (support DDR4 2666/2933)
BIOS	AMI
Watchdog Timer	256 levels
H/W Monitor	Yes
Storage Device Interface	1x M.2 (M2280) NVMe
Expansion Slots	1x PCI-E (x16) 1x mPCIe
Graphics Controller	Integrated Graphics Processor-Intel® HD Graphics

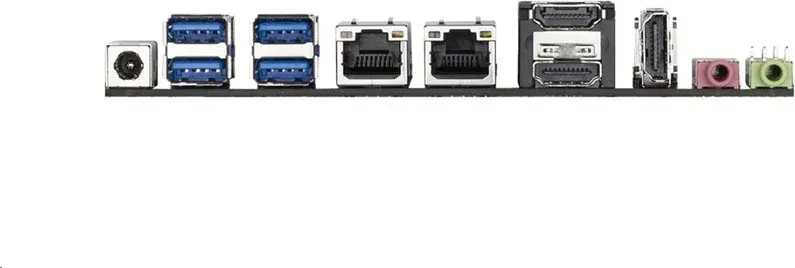

Video Output	HDMI (2.0), HDMI (1.4), · and eDP/ Dual channel LVDS 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. 2 x HDMI1.4a, supporting a maximum resolution of 4096 x 2160@30Hz
USB	USB 2.0: 4x onboard USB 3.0/ 3.1: 6x USB 3.2 (Gen1) onedge
Serial ATA	4x SATAIII
Audio	built-in PCH HD audio + Realtek ALC888S codec
TPM	TPM(2.0) ＮuvoTon NCT6116D chip, supporting TPM 2.0
Others	Digital I/O (4-in/4-out); RAID, iAMT (14.0) or Eup/ErP
Dimensions (L X W)	170mm x 170mm
Power Consumption	TBD
Operating Temperature	0°C ~ 60°C (32°F~140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity	90% (non-condensing @60°C)

Features

7 ROWS

Feature 1	10th Gen Intel® Xeon® E / Core™ / Pentium® / Celeron® processors, up to 4.7GHz
Feature 2	2x DDR4 SO-DIMM, Max. 64GB, ECC compatible
Feature 3	Intel® Processor integrated graphics, supports DVI-D, HDMI, DisplayPort and 24-bit dual channel LVDS or eDP
Feature 4	Dual Intel® Gigabit LAN
Feature 5	6x USB3.0, 4x USB2.0, 4x COM, 4x SATAIII
Feature 6	1x PCI-E (x16), 1x mPCIe, 2x M.2(E-key, M-Key)
Feature 7	Watchdog timer, Digital I/O, iAMT (14.0), TPM (2.0)

Ordering Information

1 ROWS

IM-H410G

- LGA1200 H410G Mini-ITX motherboard w/ 3xHDMI, LVDS, Dual Gigabit LAN, TPM(2.0)
